TORNADO 9121 W - 2024 - 2T1945381/ST2P - Stiga Ride On Mower Cutting Plate Lifting Diagram

Name: TORNADO 9121 W - 2024 - 2T1945381/ST2P - Stiga Ride On Mower Cutting Plate Lifting Diagram
SKU: tornado_9121_w_2t1945381_st2p_cutting_plate_lifting-group
Price: 0.54 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

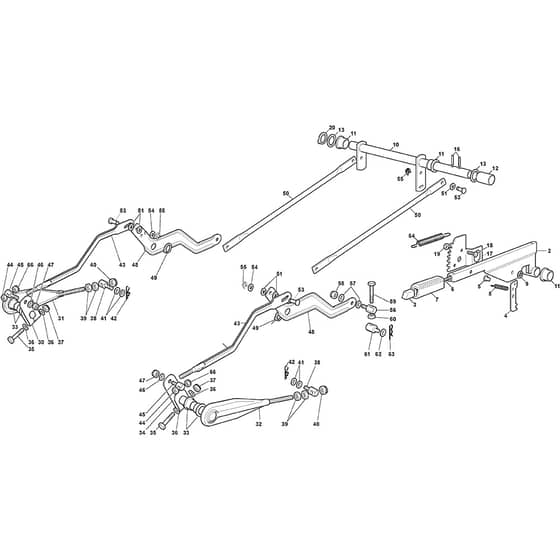

TORNADO 9121 W - 2024 - 2T1945381/ST2P - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

Stiga TORNADO 9121 W Parts Diagram

Product Name - TORNADO 9121 W

Model Year - 2024

Model Type - TNSE 118 Hydro SD

Art.N - 2T1945381/ST2P

Engine Model - GXV 630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382318139/1 Available to backorder	Deck Lifting Lever	£40.82 £34.02
3	MO125605000/1 Available to backorder	Button	£2.26 £1.88
4	MO325470901/1 Available to backorder	Dog Plate	£11.53 £9.61
5	MO125510011/1 Available to backorder	Pin	£1.55 £1.29
6	MO125033002/1 Available to backorder	Rod	£4.22 £3.52
7	MO325394536/0 Available to backorder	Knob	£1.69 £1.41
8	MO125430208/1 Available to backorder	Spring	£3.52 £2.93
9	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
10	MO382000551/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£24.64 £20.53
10	MO382000709/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£25.06 £20.88
11	MO122034523/0 Available to backorder	Bushing	£1.55 £1.29
12	MO125160025/1 Available to backorder	Spacer	£6.20 £5.17
13	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
16	MO112620206/0 Available to backorder	Pin	£1.40 £1.17
17	MO325735506/2 Available to backorder	Left Sector	£22.10 £18.42
18	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
19	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
20	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
30	MO325318219/0 Available to backorder	Lever	£5.35 £4.46
31	MO382318267/0 Available to backorder	Front Right Fulcrum Lever	£29.56 £24.63
31	MO382318159/0 Available to backorder	Front Right Fulcrum Lever	£20.14 £16.78
32	MO382318161/0 Available to backorder	Lever	£23.23 £19.36
32	MO382318269/0 Available to backorder	Front Left Fulcrum Lever	£29.56 £24.63
33	MO125040605/0 Available to backorder	Bushing	£1.55 £1.29
34	MO325318161/1 Available to backorder	Lever	£9.00 £7.50
35	MO112691700/0 In stock	Screw	£1.82 £1.52
37	MO112155000/0 In stock	Nut	£1.55 £1.29
38	MO125510162/0 Available to backorder	Pin	£9.16 £7.63
39	MO112171502/0 Available to backorder	Nut	£2.40 £2.00
40	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
42	MO125110800/0 In stock	Cotter Pin	£1.82 £1.52
43	MO382000477/3 Available to backorder	Cuttining Deck Lever Front Connecting Rod	£18.31 £15.26
43	MO382000673/0 Available to backorder	Connecting Rod Assy	£27.47 £22.89
45	MO125510055/1 Available to backorder	Pin	£4.08 £3.40
45	MO125510170/0 Available to backorder	Pin	£5.35 £4.46
46	MO112521360/0 In stock	Washer	£1.55 £1.29
48	MO325318153/2 Available to backorder	Rear Lever	£14.50 £12.08
49	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
50	MO325033071/0 Available to backorder	Rod	£12.25 £10.21
50	MO325033029/1 Available to backorder	Rod	£19.70 £16.42
51	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
52	MO125510053/2 Available to backorder	Pin	£1.97 £1.64
53	MO125510048/1 Available to backorder	Pin	£2.40 £2.00
54	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
55	MO112436050/0 In stock	Plate	£1.82 £1.52
56	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
57	MO325670008/1 In stock	Washer	£1.55 £1.29
58	MO112156602/0 In stock	Nut	£1.40 £1.17
59	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
59	MO112794980/0 Available to backorder	Screw	£2.12 £1.77
61	MO125510070/1 Available to backorder	Pin	£6.20 £5.17
62	MO112523090/0 Available to backorder	Washer	£1.82 £1.52
63	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
64	MO125430218/1 Available to backorder	Spring	£5.76 £4.80
66	MO112293200/0 In stock	Nut	£1.55 £1.29
66	MO112295200/0 In stock	Hexagon Nut M10	£1.40 £1.17
72	MO325318223/0 Available to backorder	Gearshift	£6.76 £5.63
73	MO382000585/0 Available to backorder	Cutting Deck Lifting Control Axle Assy	£38.00 £31.67
74	MO112815271/0 Available to backorder	Screw	£1.69 £1.41
75	MO325785355/0 Available to backorder	Support	£2.40 £2.00
76	MO325785354/0 Available to backorder	Support	£2.12 £1.77
77	MO325034003/0 Available to backorder	Brass	£1.82 £1.52
78	MO112523040/0 In stock	Washer	£1.49 £1.24
79	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
