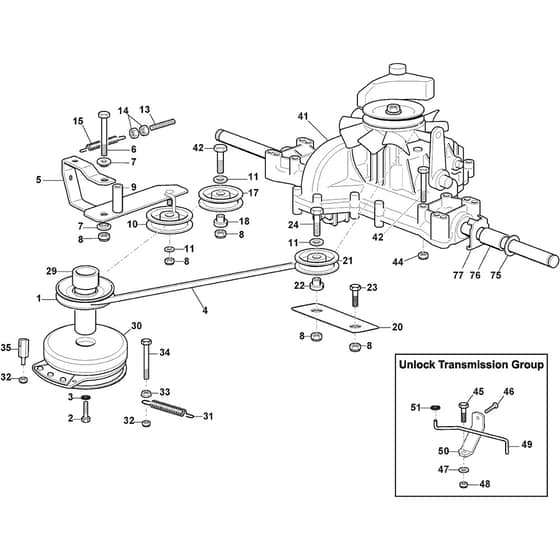

TORNADO 7121 HWSY - 2020-2021 - 2T1945381/ST1 - Stiga Ride On Mower Transmission Diagram

Name: TORNADO 7121 HWSY - 2020-2021 - 2T1945381/ST1 - Stiga Ride On Mower Transmission Diagram
SKU: tornado_7121_hwsy_2t1945381_st1_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 7121 HWSY - 2020-2021 - 2T1945381/ST1 - Stiga Ride On Mower Transmission Diagram

Description

Stiga TORNADO 7121 HWSY Parts Diagram

Product Name - TORNADO 7121 HWSY

Model Year - 2020-2021

Model Type - TNSE 118 Hydro SD

Art.N - 2T1945381/ST1

Engine Model - GXV 630

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182595501/0 Available to backorder	Pulley	£53.50 £44.58
2	MO125943013/0 Available to backorder	Screw	£12.67 £10.56
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
11	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
18	MO125160056/0 Available to backorder	Spacer	£4.66 £3.88
20	MO325547448/0 Available to backorder	Pulley Support Plate	£7.03 £5.86
21	MO382601522/0 In stock	Pulley	£23.92 £19.93
22	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
30	MO118399069/1 Available to backorder	Electromagnetic Clutch From S.N 23KA1RON000320	£353.16 £294.30
31	MO127430592/0 Available to backorder	Brake Spring	£5.76 £4.80
33	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
34	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
35	MO125598055/0 Available to backorder	Clutch Pin Extension	£14.70 £12.25
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
45	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
46	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
