TORNADO 7108 W - 2025 - 2T1850481/ST1 - Stiga Ride On Mower Cutting Plate Diagram

Description

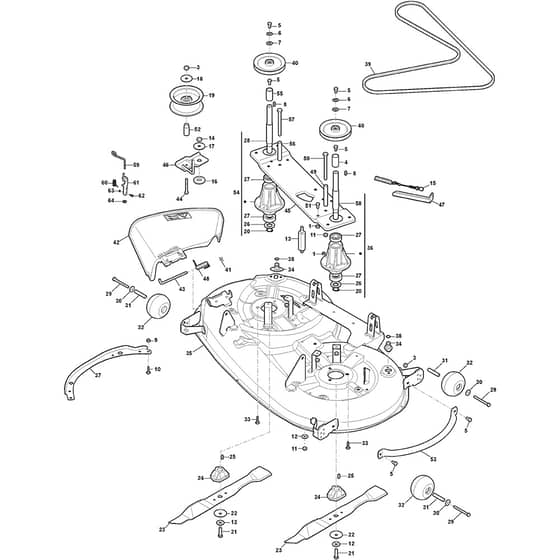

Stiga TORNADO 7108 W Parts Diagram

Product Name - TORNADO 7108 W

Model Year - 2025

Model Type - TNS 108 Hydro SD

Art.N - 2T1850481/ST1

Engine Model - ST 700 Twin

	Part No.	Details
1	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
3	MO112293201/0 In stock	Nut	£1.70 £1.42
4	MO125160092/0 Available to backorder	Spacer	£4.64 £3.87
5	MO112793102/0 In stock	Screw	£1.55 £1.29
6	MO112583500/0 In stock	Grower	£1.55 £1.29
7	MO125670007/0 In stock	Washer	£1.97 £1.64
8	MO112139480/0 In stock	Feather	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112815200/0 In stock	Screw	£1.55 £1.29
11	MO112156602/0 In stock	Nut	£1.39 £1.16
12	MO112523080/0 In stock	Washer	£1.55 £1.29
13	MO125160091/0 Available to backorder	Spacer	£9.01 £7.51
14	MO112155020/0 In stock	Nut	£1.70 £1.42
15	MO382004627/0 In stock	Blades Engagement Cable	£30.98 £25.82
16	MO125040635/0 In stock	Bushing	£4.37 £3.64
17	MO125670022/0 In stock	Washer	£1.97 £1.64
18	MO112524010/0 Available to backorder	Washer	£1.84 £1.53
19	MO382601520/0 Available to backorder	Pulley	£45.04 £37.53
20	MO112609260/0 In stock	Seeger	£1.84 £1.53
21	MO112735694/0 In stock	Screw	£1.97 £1.64
22	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
23	MO182004357/0 In stock	Mulching Blade Mulching	£25.44 £21.20
23	MO182004370/0 Available to backorder	Blade Winged Winged - Not available with Stiga Pack	£29.47 £24.56
23	MO1134-9231-01 In stock	Mulching Blades Stiga Packed into 182004357.0 (2pcs)	£50.88 £42.40
24	MO125463200/0 In stock	Blade Holder	£9.07 £7.56
25	MO112139100/0 In stock	Key	£1.55 £1.29
26	MO325160501/1 Available to backorder	Dust Cover Disc	£1.55 £1.29
27	MO119216047/0 In stock	Bearing	£15.78 £13.15
28	MO125020831/0 Available to backorder	Blade Shaft	£46.48 £38.73
29	MO112692050/0 In stock	Screw	£1.84 £1.53
30	MO112523060/0 In stock	Washer	£1.55 £1.29
31	MO125510072/1 In stock	Pin	£1.84 £1.53
32	MO182700001/0 In stock	Levelling Small Wheel	£5.47 £4.56
64	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
