TORNADO 7108 W - 2023-2024 - 2T1835481/ST1 - Stiga Ride On Mower Cutting Plate Diagram

Name: TORNADO 7108 W - 2023-2024 - 2T1835481/ST1 - Stiga Ride On Mower Cutting Plate Diagram
SKU: tornado_7108_w_2t1835481_st1_cutting_plate-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

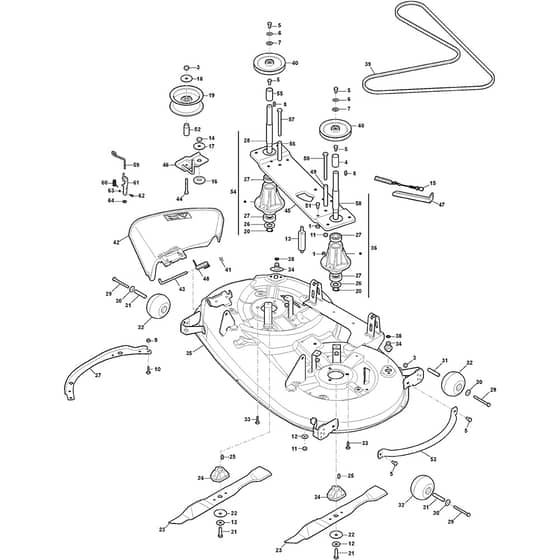

TORNADO 7108 W - 2023-2024 - 2T1835481/ST1 - Stiga Ride On Mower Cutting Plate Diagram

Description

Stiga TORNADO 7108 W Parts Diagram

Product Name - TORNADO 7108 W

Model Year - 2023-2024

Model Type - TNS 108 Hydro SD

Art.N - 2T1835481/ST1

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO125160092/0 Available to backorder	Spacer	£4.66 £3.88
5	MO112793102/0 In stock	Screw	£1.55 £1.29
6	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
7	MO125670007/0 In stock	Washer	£1.97 £1.64
8	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
11	MO112156602/0 In stock	Nut	£1.40 £1.17
12	MO112523080/0 In stock	Washer	£1.55 £1.29
13	MO125160091/0 Available to backorder	Spacer	£9.00 £7.50
14	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
15	MO382004627/0 Available to backorder	Blades Engagement Cable	£30.97 £25.81
16	MO125040635/0 In stock	Bushing	£4.19 £3.49
17	MO125670022/0 Available to backorder	Washer	£1.97 £1.64
18	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
19	MO382601520/0 Available to backorder	Pulley	£45.04 £37.53
20	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
21	MO112735694/0 In stock	Screw	£1.97 £1.64
22	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
23	MO182004357/0 In stock	Mulching Blade Mulching	£28.28 £23.57
23	MO182004370/0 Available to backorder	Blade Winged Winged - Not available with Stiga Pack	£29.48 £24.57
23	MO1134-9231-01 Available to backorder	Mulching Blades Stiga Packed into 182004357.0 (2pcs)	£53.33 £44.44
24	MO125463200/0 In stock	Blade Holder	£9.08 £7.57
25	MO112139100/0 In stock	Key	£1.55 £1.29
26	MO325160501/1 Available to backorder	Dust Cover Disc	£1.49 £1.24
27	MO119216047/0 In stock	Bearing	£15.78 £13.15
28	MO125020831/0 Available to backorder	Blade Shaft	£46.46 £38.72
29	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
30	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO125510072/1 In stock	Pin	£1.82 £1.52
32	MO182700001/0 In stock	Levelling Small Wheel	£5.48 £4.57
33	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
34	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
35	MO382565085/1 Available to backorder	Cutting Deck Grey Grey NCS-8000N	£647.56 £539.63
36	MO382207200/2LC Available to backorder	Main Blade Shaft Ass.Y	£101.35 £84.46
37	MO325547259/1 Available to backorder	Stiffening	£14.99 £12.49
38	MO325033086/0 Available to backorder	Water Hose Connection	£1.55 £1.29
39	MO135062028/0 Available to backorder	Trapezoidal Belt	£58.86 £49.05
40	MO125601571/0 Available to backorder	Pulley	£30.70 £25.58
41	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
42	MO325600087/2 Available to backorder	Ejection Guard	£29.56 £24.63
43	MO125510073/0 Available to backorder	Fulcrum Pin	£7.67 £6.39
44	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
45	MO325547423/0 Available to backorder	Transmission Plate	£39.08 £32.57
46	MO382300011/0 Available to backorder	Tightener Lever	£13.24 £11.03
47	MO325774659/0 Available to backorder	Idler Spring Stirrup	£9.85 £8.21
48	MO125430242/1 In stock	Spring	£3.38 £2.82
49	MO125160096/0 Available to backorder	Spacer	£7.19 £5.99
50	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
51	MO9897-0820-16 Available to backorder	Screw	£1.97 £1.64
52	MO125160095/0 Available to backorder	Spacer	£6.05 £5.04
53	MO382650049/0 Available to backorder	Side Deck Reinforced Grey NCS-8000N	£30.97 £25.81
54	MO382207214/0 Available to backorder	Main Blade Shaft	£109.79 £91.49
55	MO125160098/0 Available to backorder	Spacer	£4.22 £3.52
56	MO125160097/0 Available to backorder	Spacer	£5.76 £4.80
57	MO112794980/0 Available to backorder	Screw	£2.12 £1.77
58	MO125020832/0 Available to backorder	Main Blade Shaft	£39.76 £33.13
59	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
60	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
61	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.20 £5.17
62	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
63	MO112154510/0 In stock	Nut	£1.55 £1.29
64	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
