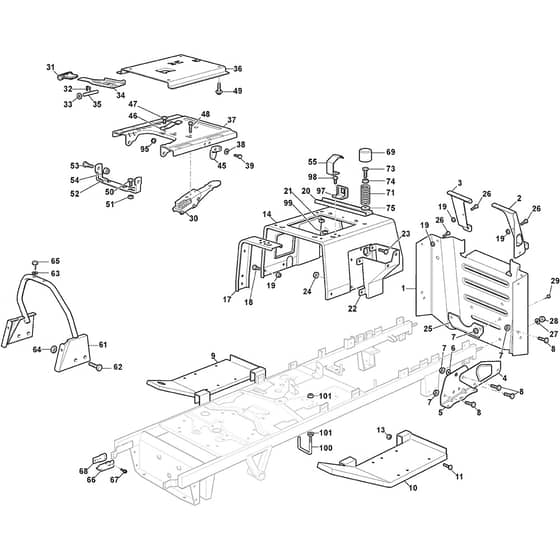

TORNADO 7108 W - 2022-2023 - 2T1845481/ST2 - Stiga Ride On Mower Frame Diagram

Name: TORNADO 7108 W - 2022-2023 - 2T1845481/ST2 - Stiga Ride On Mower Frame Diagram
SKU: tornado_7108_w_2t1845481_st2_frame-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 7108 W - 2022-2023 - 2T1845481/ST2 - Stiga Ride On Mower Frame Diagram

Description

Stiga TORNADO 7108 W Parts Diagram

Product Name - TORNADO 7108 W

Model Year - 2022-2023

Model Type - TNS 108 Hydro SD

Art.N - 2T1845481/ST2

Engine Model - ST 650 Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547103/1 Available to backorder	Rear Plate	£102.76 £85.63
2	MO325774683/0 Available to backorder	Left Bracket	£13.16 £10.97
3	MO325774681/0 Available to backorder	Right Bracket	£13.16 £10.97
4	MO382774299/0 Available to backorder	Bracket	£7.46 £6.22
5	MO325774675/0 Available to backorder	Transmission Bracket	£16.06 £13.38
6	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
7	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
8	MO112793102/0 In stock	Screw	£1.55 £1.29
9	MO382510041/2 Available to backorder	Right Footboard Support	£80.84 £67.37
10	MO382510043/2 Available to backorder	Left Footboard Support	£80.84 £67.37
11	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
17	MO325650065/1 Available to backorder	Pulley Stiffening	£9.28 £7.73
20	MO325650067/1 Available to backorder	Pulley Stiffening	£5.92 £4.93
21	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
22	MO325785137/1 Available to backorder	Support	£35.20 £29.33
23	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
25	MO1134-5512-01 Available to backorder	Towing Plate	£20.40 £17.00
26	MO112791213/1 In stock	Screw	£1.55 £1.29
27	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
28	MO112295200/0 In stock	Nut	£1.40 £1.17
30	MO382318316/1 Available to backorder	Opc Spring And Lever Assy	£40.82 £34.02
31	MO322394505/0 Available to backorder	Knob	£2.40 £2.00
32	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
33	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
34	MO325318303/0 Available to backorder	Stop Lever	£4.78 £3.98
35	MO125510000/0 Available to backorder	Pin	£1.40 £1.17
36	MO325785147/2 Available to backorder	Seat Support	£40.82 £34.02
37	MO382785301/0 Available to backorder	Fixed Seat Support	£43.64 £36.37
38	MO112523020/0 In stock	Washer	£1.55 £1.29
39	MO112815050/0 Available to backorder	Screw	£1.55 £1.29
45	MO325060049/0 Available to backorder	Seat Switch Cam	£2.26 £1.88
46	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
47	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
48	MO112735661/0 Available to backorder	Screw	£1.55 £1.29
49	MO9959-0820-16 In stock	Screw	£1.55 £1.29
50	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
51	MO112293201/0 In stock	Nut	£1.69 £1.41
52	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
53	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
54	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
55	MO325430255/0 Available to backorder	Spring	£3.94 £3.28
61	MO382650045/0 Available to backorder	Central Stiffening Support Frame	£40.82 £34.02
62	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
63	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
65	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
66	MO325774689/1 Available to backorder	Mobile Bonnet Fulcrum Bracket	£6.62 £5.52
67	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
68	MO325774691/2 Available to backorder	Fixed Bonnet Fulcrum Bracket	£4.66 £3.88
69	MO325122000/2 Available to backorder	Cap	£1.55 £1.29
71	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
73	MO125943001/1 Available to backorder	Screw	£1.97 £1.64
74	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
75	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
101	MO112292102/0 In stock	Flanged Hexagonal Nut M6	£1.69 £1.41
