TORNADO 7108 HWSY - 2020-2022 - 2T1845381/ST1 - Stiga Ride On Mower Transmission Diagram

Name: TORNADO 7108 HWSY - 2020-2022 - 2T1845381/ST1 - Stiga Ride On Mower Transmission Diagram
SKU: tornado_7108_hwsy_2t1845381_st1_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_7108_hwsy_2t1845381_st1_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 7108 HWSY - 2020-2022 - 2T1845381/ST1 - Stiga Ride On Mower Transmission Diagram

Description

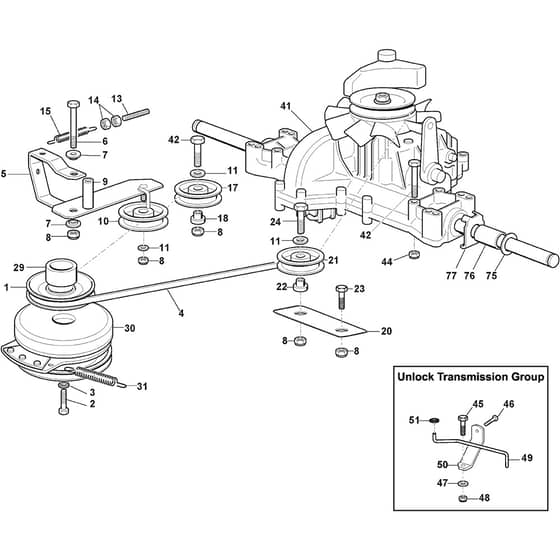

Stiga TORNADO 7108 HWSY Parts Diagram

Product Name - TORNADO 7108 HWSY

Model Year - 2020-2022

Model Type - TNSE 108 Hydro SD

Art.N - 2T1845381/ST1

Engine Model - GXV 630

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
4	MO135062020/1 In stock	Trapezoidal Belt	£38.77 £32.31
5	MO382318165/2 Available to backorder	Lever	£27.76 £23.13
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 Available to backorder	Bushing	£1.55 £1.29
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.66 £21.38
11	MO112523060/0 In stock	Washer	£1.55 £1.29
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.18 £15.98
18	MO125160056/0 Available to backorder	Spacer	£4.64 £3.87
20	MO325547448/0 Available to backorder	Pulley Support Plate	£7.02 £5.85
21	MO382601522/0 In stock	Pulley	£23.92 £19.93
22	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
23	MO112793102/0 In stock	Screw	£1.55 £1.29
24	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
30	MO118399062/1 Available to backorder	Electromagnetic Clutch To S.N 22JA1RON000558	£351.52 £292.93
31	MO125430210/1 Available to backorder	Brake Spring	£2.82 £2.35
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.63 £1.36
44	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
45	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
46	MO112735150/0 Available to backorder	Screw	£1.70 £1.42
47	MO112521350/0 In stock	Washer	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.32 £5.27
50	MO325785523/0 Available to backorder	Rear Support	£6.77 £5.64
51	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
75	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
