TORNADO 7108 HWSY - 2019 - 2T1845281/ST1 - Stiga Ride On Mower Seat Diagram

Name: TORNADO 7108 HWSY - 2019 - 2T1845281/ST1 - Stiga Ride On Mower Seat Diagram
SKU: tornado_7108_hwsy_2t1845281_st1_seat-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 7108 HWSY - 2019 - 2T1845281/ST1 - Stiga Ride On Mower Seat Diagram

Description

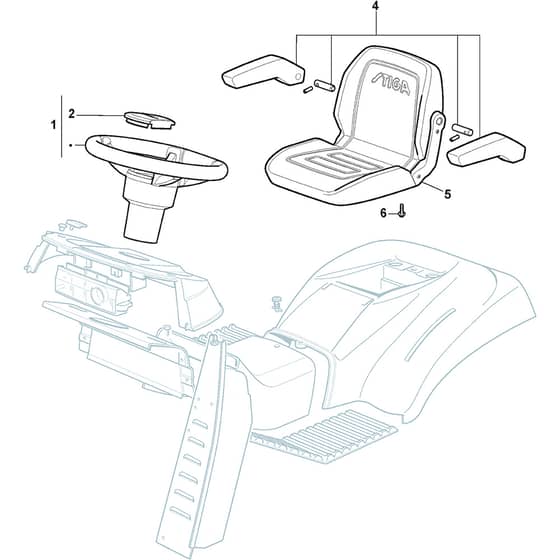

Stiga TORNADO 7108 HWSY Parts Diagram

Product Name - TORNADO 7108 HWSY

Model Year - 2019

Model Type - TNSE 108 Hydro SD

Art.N - 2T1845281/ST1

Engine Model - Intek 7220 V-Twin

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325961222/1 Available to backorder	Steering Wheel To S.N 20JA1RON000249	£295.63 £246.36
1	MO325961225/0 Available to backorder	Steering Wheel From S.N 20JA1RON000250	£232.28 £193.57
2	MO325580508/0 Available to backorder	Steering Plate Cover To S.N 20JA1RON000249	£5.96 £4.97
2	MO325580510/0 Available to backorder	Steering Plate Cover From S.N 20JA1RON000250	£6.20 £5.17
4	MO387185100/1 Available to backorder	Arm Rest Kit	£218.21 £181.84
5	MO125722480/1 Available to backorder	Seat	£380.10 £316.75
6	MO9959-0820-16 In stock	Screw M6Sf M8 X 20 Tl	£1.55 £1.29
