TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Tank Diagram

Name: TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Tank Diagram
SKU: tornado_6108_hw_2t1800681_17_tank-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_6108_hw_2t1800681_17_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Tank Diagram

Description

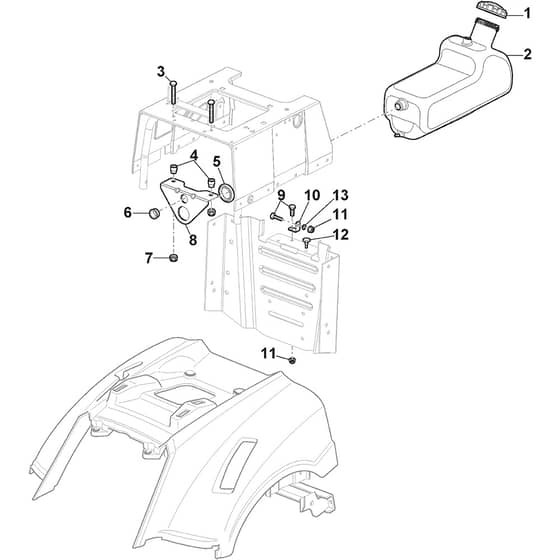

Stiga TORNADO 6108 HW Parts Diagram

Product Name - TORNADO 6108 HW

Model Year - 2017-2019

Model Type - TNS 108 Hydro SD

Art.N - 2T1800681/17

Engine Model - FS481V

	Part No.	Details
1	MO137793050/0 Available to backorder	Fuel Cap	£45.26 £37.72
2	MO325735129/0 Available to backorder	Fuel Tank [15 Litres]	£109.79 £91.49
3	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
4	MO125160030/2 Available to backorder	Left Spacer	£6.46 £5.38
5	MO325260012/0 Available to backorder	Grommet	£6.46 £5.38
6	MO325038022/0 Available to backorder	Bushing	£1.70 £1.42
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO325774685/0 Available to backorder	Rear Fuel Tank Support Bracket	£9.73 £8.11
9	MO112791213/1 In stock	Screw	£1.55 £1.29
10	MO325547427/0 Available to backorder	Bracket	£3.52 £2.93
11	MO112292102/0 In stock	Nut	£1.70 £1.42
12	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
13	MO112523040/0 In stock	Washer M6 6.6 X 18 X 1.6	£1.55 £1.29
