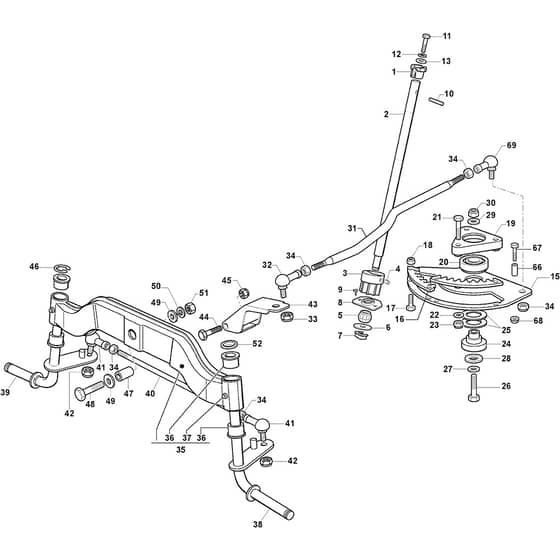

Stiga TORNADO 6108 HW Parts Diagram

Product Name - TORNADO 6108 HW

Model Year - 2017-2019

Model Type - TNS 108 Hydro SD

Art.N - 2T1800681/17

Engine Model - FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325038004/0 Available to backorder	Bushing	£2.40 £2.00
2	MO125520017/0 Available to backorder	Steering Column Specific for Stiga TNS-TX-TS Bonnet	£29.56 £24.63
3	MO125570004/0 In stock	Pinion	£10.98 £9.15
4	MO112714300/0 Available to backorder	Grub Screw	£1.55 £1.29
5	MO325743000/0 In stock	Joint	£2.68 £2.23
6	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
7	MO112436030/0 In stock	Plate	£1.82 £1.52
8	MO325785213/1 Available to backorder	Support	£2.40 £2.00
9	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
10	MO112620250/0 Available to backorder	Pin	£1.55 £1.29
11	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
12	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO325735523/2 Available to backorder	Steering Sector	£40.82 £34.02
16	MO325150000/0 Available to backorder	Steering Quadrant	£7.02 £5.85
17	MO112791213/1 In stock	Screw	£1.55 £1.29
18	MO112154510/0 In stock	Nut	£1.55 £1.29
19	MO325774453/0 Available to backorder	Clamp	£24.22 £20.18
20	MO119216047/0 In stock	Bearing	£15.78 £13.15
21	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
22	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
23	MO112155000/0 In stock	Nut	£1.55 £1.29
24	MO125510120/0 Available to backorder	Support	£10.84 £9.03
25	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
29	MO112523080/0 In stock	Washer	£1.55 £1.29
31	MO125033003/1 Available to backorder	Steering Rod	£39.42 £32.85
34	MO112295200/0 In stock	Nut	£1.40 £1.17
35	MO382034045/0 Available to backorder	Cast Iron Equalizer	£211.16 £175.97
36	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
37	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
38	MO382230399/0 Available to backorder	Left Stub Axle	£67.57 £56.31
39	MO382230397/0 Available to backorder	Right Stub Axle	£66.16 £55.13
40	MO325840001/1 Available to backorder	Tie Rod	£14.80 £12.33
41	MO122746609/0 Available to backorder	Joint	£21.83 £18.19
43	MO382318185/0 Available to backorder	Lever Ass.Y	£24.36 £20.30
44	MO112692395/2 In stock	Screw From 01-9-2017	£3.24 £2.70
45	MO112156602/0 In stock	Nut	£1.40 £1.17
46	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
47	MO125160005/1 Available to backorder	Spacer	£5.35 £4.46
48	MO112694100/0 Available to backorder	Screw	£4.08 £3.40
49	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
50	MO112587900/0 Available to backorder	Grower	£1.55 £1.29
51	MO112295800/0 Available to backorder	Nut	£1.82 £1.52
52	MO125160093/0 Available to backorder	Bush	£5.76 £4.80
66	MO122167840/0 Available to backorder	Spacer	£1.55 £1.29
67	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
68	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
69	MO122746616/0 Available to backorder	Angular Joint Ns16 M10	£29.56 £24.63
