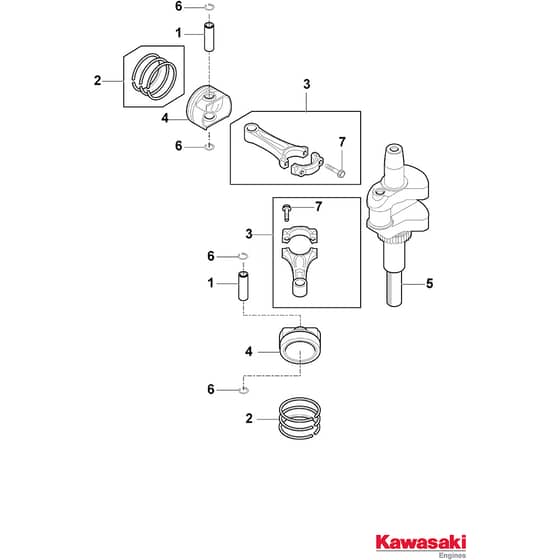

TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Piston Diagram

Part No. tornado_6108_hw_2t1800681_17_piston-group
TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Piston Diagram
TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Piston Diagram

Description

Stiga TORNADO 6108 HW Parts Diagram

Product Name - TORNADO 6108 HW

Model Year - 2017-2019

Model Type - TNS 108 Hydro SD

Art.N - 2T1800681/17

Engine Model - FS481V

Ref. Img. Part No. Details
  1 Piston Pin
Piston Pin
KA13002-7001
Available to backorder
Piston Pin
£7.28 £6.07

  2 Piston Ring Kawasaki p.n 13008-7006
Piston Ring Kawasaki p.n 13008-7006
KA13008-0583
Available to backorder
Piston Ring Kawasaki p.n 13008-7006
£48.86 £40.72

  3 Rod Kawasaki p.n 13251-7021
Rod Kawasaki p.n 13251-7021
KA13251-0718
Available to backorder
Rod Kawasaki p.n 13251-7021
£91.44 £76.20

  4 Piston Kawasaki p.n 13001-7031
Piston Kawasaki p.n 13001-7031
KA13001-7031
Available to backorder
Piston Kawasaki p.n 13001-7031
£97.80 £81.50

  5 Crankshaft Kawasaki p.n 13031-0731
Crankshaft Kawasaki p.n 13031-0731
KA13031-0814
Available to backorder
Crankshaft Kawasaki p.n 13031-0731
£332.64 £277.20

  6 Snap Ring Kawasaki p.n 92033-0725
Snap Ring Kawasaki p.n 92033-0725
KA92033-0780
Available to backorder
Snap Ring Kawasaki p.n 92033-0725
£0.80 £0.67

  7 Flanged Hex-Head Screw D.6 X 35
Flanged Hex-Head Screw D.6 X 35
MO112735410/0
Available to backorder
Flanged Hex-Head Screw D.6 X 35
£1.63 £1.36


Description

Stiga TORNADO 6108 HW Parts Diagram

Product Name - TORNADO 6108 HW

Model Year - 2017-2019

Model Type - TNS 108 Hydro SD

Art.N - 2T1800681/17

Engine Model - FS481V
