TORNADO 6108 HW - 2017-2019 - 2T1800681/17 - Stiga Ride On Mower Cooling Diagram

Description

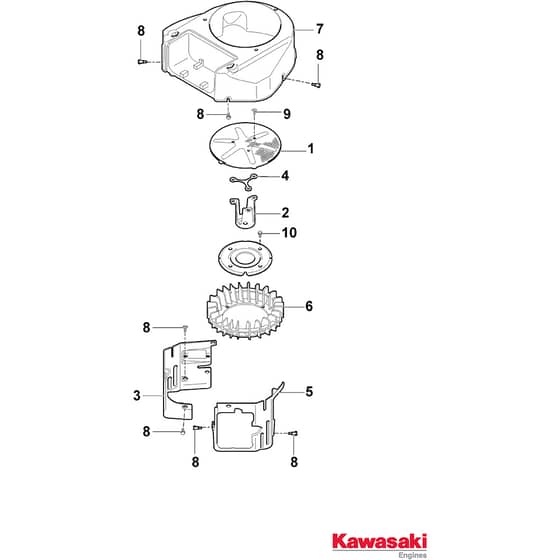

Stiga TORNADO 6108 HW Parts Diagram

Product Name - TORNADO 6108 HW

Model Year - 2017-2019

Model Type - TNS 108 Hydro SD

Art.N - 2T1800681/17

Engine Model - FS481V

Be the first to review this product

0 product questions

	Part No.	Details
1	KA14037-70089H Available to backorder	Screen	£58.72 £48.93
2	KA23062-7022 Available to backorder	Bracket Kawasaki p.n 23062-7022	£21.58 £17.98
3	KA49089-7083 Available to backorder	Engine Cover Kawasaki p.n 49089-7083	£28.08 £23.40
4	KA92026-7007 Available to backorder	Spacer Kawasaki p.n 92026-7007	£9.67 £8.06
5	KA49089-7084 Available to backorder	Engine Cover Kawasaki p.n 49089-7084	£38.18 £31.82
6	KA59041-0024 Available to backorder	Fan Kawasaki p.n 59041-0008	£31.68 £26.40
7	KA59066-0044 Available to backorder	Fan Cover Kawasaki p.n 59066-0044	£187.32 £156.10
8	MO112735402/0 Available to backorder	Screw Kawasaki p.n 92153-7007	£1.55 £1.29
9	MO112727794/0 Available to backorder	Screw Kawasaki p.n 92151-7012	£1.40 £1.17
10	MO112735699/0 Available to backorder	Screw M6 X 12	£1.40 £1.17
