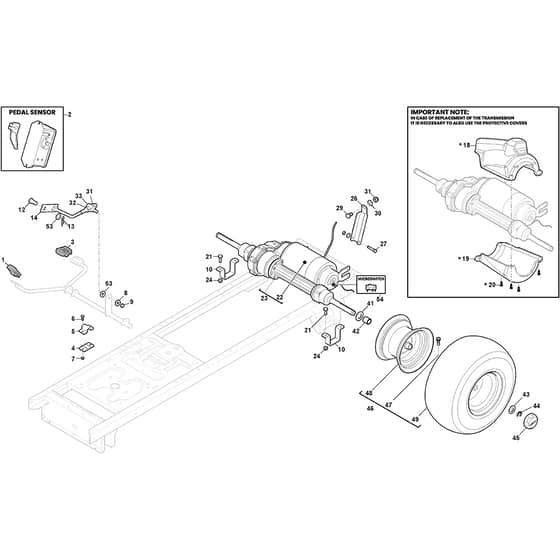

Tornado 598e - 2022-2025 - 2T0665481/ST2 - Stiga Ride On Mower Transmission Diagram

Name: Tornado 598e - 2022-2025 - 2T0665481/ST2 - Stiga Ride On Mower Transmission Diagram
SKU: tornado_598e_2t0665481_st2_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_598e_2t0665481_st2_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tornado 598e - 2022-2025 - 2T0665481/ST2 - Stiga Ride On Mower Transmission Diagram

Description

Stiga Tornado 598e Parts Diagram

Product Name - Tornado 598e

Model Year - 2022-2025

Model Type - SDST 98 Li 48 V2

Art.N - 2T0665481/ST2

Engine Model -

	Part No.	Details
1	MO325110274/0 Available to backorder	Clamp Cover Front	£7.19 £5.99
2	MO118361037/0 Available to backorder	Pedal Sensor	£108.46 £90.38
3	MO325110331/0 Available to backorder	Clamp Cover Rear	£7.02 £5.85
4	MO325785350/0 Available to backorder	Support	£1.55 £1.29
5	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
6	MO112735599/0 In stock	Screw	£1.55 £1.29
8	MO112523060/0 In stock	Washer	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO382785311/0 Available to backorder	Support	£9.65 £8.04
12	MO125510022/1 In stock	Pin	£3.10 £2.58
13	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
14	MO382000717/0 Available to backorder	Drive.Reverse Rod Assy	£20.40 £17.00
18	MO325600158/0 Available to backorder	Upper Protection. Electric Transmission	£5.57 £4.64
19	MO325600159/0 Available to backorder	Lower Protection. Electric Transmission	£4.37 £3.64
20	MO112728697/0 In stock	Screw	£1.55 £1.29
21	MO112793102/0 In stock	Screw	£1.55 £1.29
22	MO118870397/0 Available to backorder	Motor Assy - Electric Transmission	£439.66 £366.38
23	MO118400899/1 Available to backorder	Electric Transaxle in case of replacement is mandatory to use protective covers pos18-19	£751.90 £626.58
54	MO118870327/0 Available to backorder	Microswitch - E-Ride Transmission	£37.15 £30.96
