TORNADO 5108 W Special - 2022-2025 - 2T1200381/ST2 - Stiga Ride On Mower Steering Diagram

Description

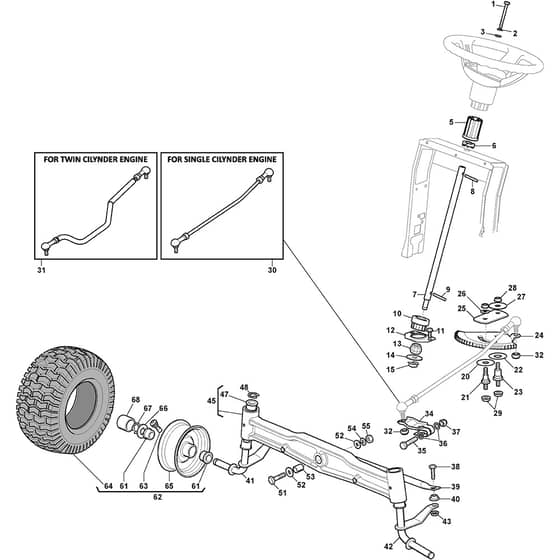

Stiga TORNADO 5108 W Special Parts Diagram

Product Name - Tornado Special

Model Year - 2022-2025

Model Type - SDSTL 108 Hydro

Art.N - 2T1200381/ST2

Engine Model - GCV 530

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112692100/0 Available to backorder	Screw	£2.81 £2.34
2	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
5	MO382785304/0 Available to backorder	Support	£27.46 £22.88
6	MO325038008/0 In stock	Bushing	£1.55 £1.29
7	MO125520018/0 Available to backorder	Steering Column	£23.92 £19.93
8	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
9	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
10	MO125570003/0 Available to backorder	Pinion	£8.59 £7.16
11	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
12	MO325785213/1 Available to backorder	Support	£2.40 £2.00
13	MO325743000/0 In stock	Joint	£2.68 £2.23
14	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
15	MO112436030/0 In stock	Plate	£1.82 £1.52
20	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
21	MO125510173/0 Available to backorder	Pin	£1.97 £1.64
22	MO125670023/0 In stock	Washer	£1.82 £1.52
23	MO125510165/0 In stock	Pin	£4.78 £3.98
24	MO325735519/0 In stock	Steering Sector	£35.20 £29.33
25	MO325547233/0 Available to backorder	Plate	£3.52 £2.93
26	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
27	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
29	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
31	MO382000689/1 Available to backorder	Steering Rod Assy for Twin Cilynder Engine	£46.46 £38.72
32	MO112156602/0 In stock	Nut	£1.40 £1.17
34	MO382318323/0 In stock	Steering Control Lever	£7.61 £6.34
35	MO112692395/2 In stock	Screw	£3.24 £2.70
36	MO112521360/0 In stock	Washer	£1.55 £1.29
37	MO112155020/0 Available to backorder	Nut	£1.69 £1.41
38	MO125510103/0 Available to backorder	Pin	£1.55 £1.29
39	MO382820019/0 Available to backorder	Tie Rod Cast Iron	£12.95 £10.79
40	MO325038007/0 In stock	Bushing	£1.55 £1.29
41	MO382230373/1 In stock	Right Stub Axle 15"	£56.32 £46.93
42	MO382230375/1 In stock	Left Stub Axle 15"	£56.32 £46.93
43	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO382034047/1 Available to backorder	Rod Cast Iron	£209.76 £174.80
47	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
51	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
52	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
53	MO125160016/1 Available to backorder	Spacer	£6.20 £5.17
54	MO112587100/0 Available to backorder	Grower	£1.55 £1.29
55	MO112295300/0 Available to backorder	Nut	£1.55 £1.29
61	MO125122200/2 In stock	Bearing	£11.82 £9.85
62	MO382680078/0 Available to backorder	Wheel Assy 15" - P519	£135.13 £112.61
63	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
64	MO125590020/0 Available to backorder	Tyre 15X6.00-6 P519 (Wanda) 15"	£66.37 £55.31
65	MO182001507/0 Available to backorder	Front Wheel Rimm	£70.39 £58.66
66	MO125670005/2 In stock	Washer	£4.08 £3.40
67	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
68	MO322110240/1 Available to backorder	Stiga Hub Cover [Black]	£1.82 £1.52
