TORNADO 5108 W Special - 2022-2025 - 2T1200381/ST2 - Stiga Ride On Mower Honda Engine Diagram

Description

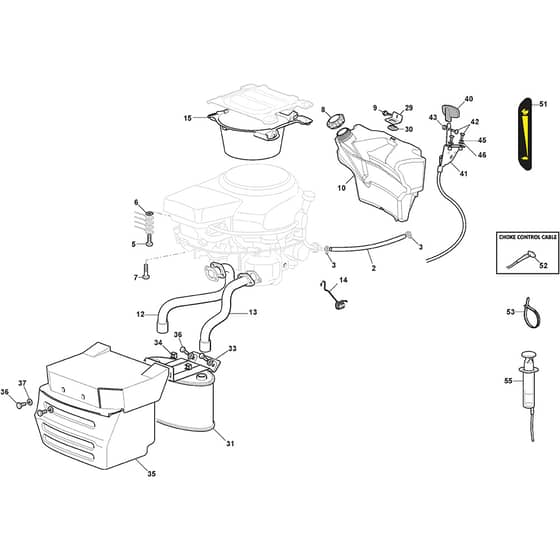

Stiga TORNADO 5108 W Special Parts Diagram

Product Name - Tornado Special

Model Year - 2022-2025

Model Type - SDSTL 108 Hydro

Art.N - 2T1200381/ST2

Engine Model - GCV 530

	Part No.	Details
1	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
3	MO118375051/1 Available to backorder	Fair Led To S.N 24GA3RON000472	£3.00 £2.50
3	MO118375062/0 Available to backorder	Fair Led From S.N 24GA3RON000473	£1.92 £1.60
5	MO112735599/0 In stock	Screw	£1.55 £1.29
7	MO112735108/1 In stock	Screw	£2.11 £1.76
8	MO125795001/1 In stock	Cap	£7.97 £6.64
9	MO127943051/0 Available to backorder	Screw	£1.84 £1.53
10	MO325735126/1 Available to backorder	Tank	£46.46 £38.72
12	MO118738285/0 Available to backorder	Right Exhaust Connection Tube	£22.93 £19.11
13	MO118738286/0 Available to backorder	Left Exhaust Connection Tube	£22.93 £19.11
14	MO125430292/0 Available to backorder	Spring	£1.70 £1.42
15	MO325108106/0 Available to backorder	Conveyor	£11.70 £9.75
29	MO325755085/0 Available to backorder	Angle Bracket	£4.78 £3.98
31	MO182750003/0 Available to backorder	Muffler Assy To S.N 23KA3RON012146	£265.02 £220.85
31	MO182750017/0 Available to backorder	Muffler Assy From S.N 23KA3RON012147	£67.57 £56.31
34	MO112360425/0 Available to backorder	Nut	£1.92 £1.60
35	MO382598049/1 Available to backorder	Muffler Protection From S.N 23CA3RON002348	£73.74 £61.45
36	MO112792611/0 In stock	Screw	£1.55 £1.29
37	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
40	MO325394531/0 Available to backorder	Knob	£1.84 £1.53
41	MO182000217/0 Available to backorder	Accelerator	£20.29 £16.91
42	MO112726389/0 Available to backorder	Screw Black Galvanized	£1.55 £1.29
42	MO112726388/0 Available to backorder	Screw White Galvanized	£1.55 £1.29
43	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
45	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
46	MO112521310/0 Available to backorder	Washer	£1.39 £1.16
51	MO114364617/0 Available to backorder	Throttle Label	£1.55 £1.29
52	MO125090009/0 Available to backorder	Choke Control Cable From S.N 23JA3RON002050	£19.98 £16.65
52	MO125090003/0 In stock	Choke Control To S.N 23JA3RON002049	£19.98 £16.65
53	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
55	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
