TORNADO 4108 HWL AP - 2021-2023 - 2T1240481/AP21 - Stiga Ride On Mower Frame Diagram

Description

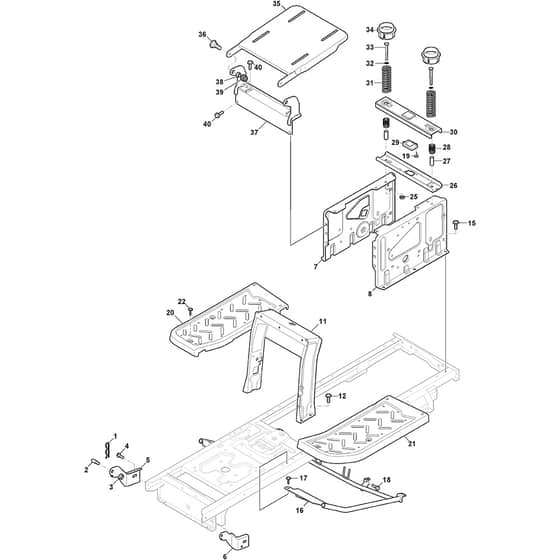

Stiga TORNADO 4108 HWL AP Parts Diagram

Product Name - TORNADO 4108 HWL AP

Model Year - 2021-2023

Model Type - SDSTL 108 Hydro

Art.N - 2T1240481/AP21

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
2	MO125510169/1 Available to backorder	Pin	£2.40 £2.00
3	MO112155000/0 In stock	Nut	£1.55 £1.29
5	MO325547225/0 Available to backorder	Right Plate	£6.34 £5.28
6	MO325547227/0 Available to backorder	Left Plate	£6.76 £5.63
7	MO325785331/2 Available to backorder	Right Seat Support	£32.26 £26.88
8	MO325785333/2 Available to backorder	Left Seat Support	£32.26 £26.88
11	MO382785169/1 Available to backorder	Steering Column Support	£57.71 £48.09
16	MO382785197/1 Available to backorder	Footboard Support For Hydrostatic Models	£61.80 £51.50
18	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
19	MO112728697/0 In stock	Screw	£1.55 £1.29
20	MO325500050/0 Available to backorder	Right Footboard	£23.52 £19.60
21	MO325500051/1 Available to backorder	Left Footboard	£24.44 £20.37
22	MO112735403/0 Available to backorder	Screw	£1.55 £1.29
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
29	MO325785379/1 Available to backorder	Support	£1.55 £1.29
