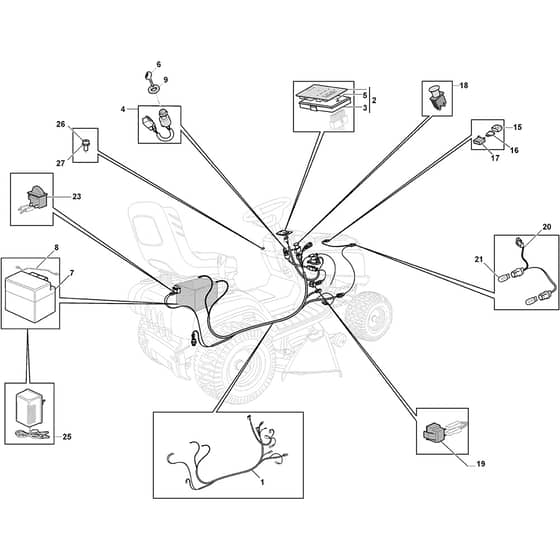

TORNADO 4108 HWK AP - 2018-2021 - 2T1220681/AP18 - Stiga Ride On Mower Electric Parts Diagram

Description

Stiga TORNADO 4108 HWK AP Parts Diagram

Product Name - TORNADO 4108 HWK AP

Model Year - 2018-2021

Model Type - SDNS 108 Hydro

Art.N - 2T1220681/AP18

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO182040221/1 Available to backorder	Wiring Harness From S.N 23IA1RON000001	£217.14 £180.95
2	MO382722471/2 In stock	Electronic Card "LS" marked From S.N 22LA3RON001386	£46.36 £38.63
3	MO325600090/1 Available to backorder	Card Protection	£4.66 £3.88
4	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
5	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
6	MO118210023/0 In stock	Starting Key	£7.03 £5.86
7	MO118120068/0 In stock	Battery 12V 18Ah From S.N 19JA3RON003696	£113.48 £94.57
8	MO125430265/1 Available to backorder	Spring	£1.82 £1.52
9	MO118400863/0 Available to backorder	Screwed Ring	£1.69 £1.41
15	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
16	MO133340036/0 Available to backorder	Fuse 25 A	£1.69 £1.41
16	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
17	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
18	MO118450073/0 In stock	Clutch Switch Red	£14.92 £12.43
19	MO119410622/1 In stock	Microswitch N.O. - Black	£6.62 £5.52
20	MO182040186/0 Available to backorder	Lamp Holder Cable	£10.91 £9.09
21	MO118459100/0 Available to backorder	Lamp For Lights	£2.12 £1.77
23	MO119410633/0 Available to backorder	Seat Microswitch	£6.26 £5.22
25	MO182180129/0 Available to backorder	Battery Charger 12V 1A - Aus Plugg AUS plug (unify with 182180190.0)	£66.16 £55.13
26	MO325605003/0 In stock	Push Button Reverse Gear	£30.77 £25.64
27	MO325256250/0 Available to backorder	Threaded Ring Nut	£2.53 £2.11
