TORNADO 4108 HWK AP - 2018-2021 - 2T1220681/AP18 - Stiga Ride On Mower Electric Equipment Diagram

Description

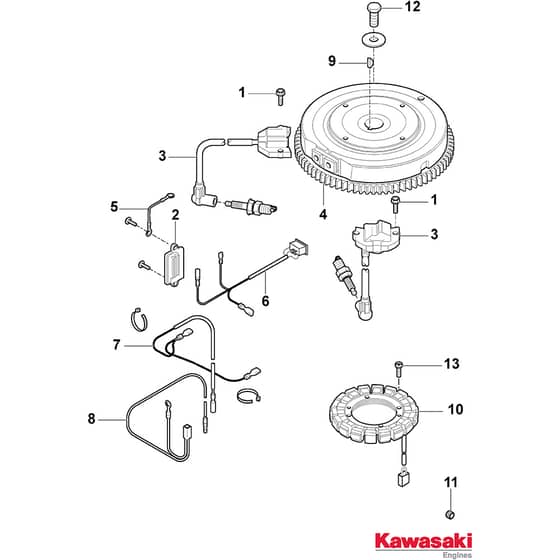

Stiga TORNADO 4108 HWK AP Parts Diagram

Product Name - TORNADO 4108 HWK AP

Model Year - 2018-2021

Model Type - SDNS 108 Hydro

Art.N - 2T1220681/AP18

Engine Model -

	Part No.	Details
1	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
2	KA21066-7017 Available to backorder	Regulator Kawasaki p.n 21066-7017	£88.08 £73.40
3	KA21171-0743 Available to backorder	Ignition Coil Kawasaki p.n 21171-0711	£113.96 £94.97
4	KA21193-0035 Available to backorder	Flywheel Ass.Y Kawasaki p.n 21193-7038	£343.44 £286.20
5	KA26011-7025 Available to backorder	Fairlead Kawasaki p.n 26011-7025	£3.79 £3.16
7	KA26031-7040 Available to backorder	Harness Kawasaki p.n 26031-7040	£10.12 £8.43
8	KA26031-7047 Available to backorder	Harness Kawasaki p.n 26031-7047	£14.71 £12.26
9	KA510A5-100 Available to backorder	Flywheel Key Kawasaki p.n 510A5100	£1.76 £1.47
10	KA59031-7017 Available to backorder	Charging Coil Kawasaki p.n 59031-7017	£203.76 £169.80
11	KA92066-0881 Available to backorder	Plug Kawasaki p.n 92066-0762	£6.40 £5.33
13	MO112727795/0 Available to backorder	Cheese-Head Screw M5 X 20	£1.33 £1.11
