TORNADO 4108 HW AP - 2018-2021 - 2T1230281/AP18 - Stiga Ride On Mower Belt Protection Diagram

Name: TORNADO 4108 HW AP - 2018-2021 - 2T1230281/AP18 - Stiga Ride On Mower Belt Protection Diagram
SKU: tornado_4108_hw_ap_2t1230281_ap18_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_4108_hw_ap_2t1230281_ap18_belt_protection-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 4108 HW AP - 2018-2021 - 2T1230281/AP18 - Stiga Ride On Mower Belt Protection Diagram

Description

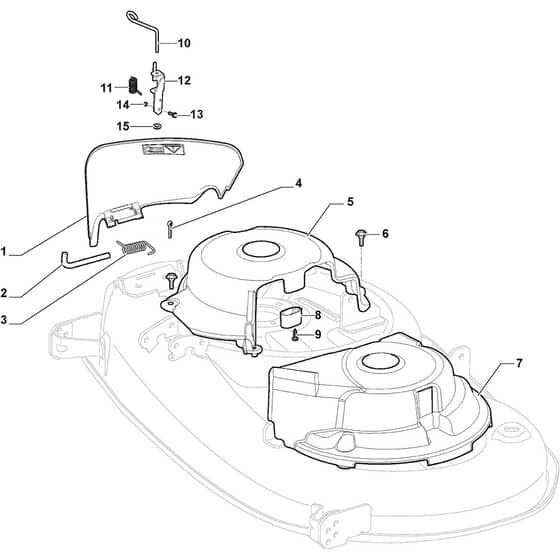

Stiga TORNADO 4108 HW AP Parts Diagram

Product Name - TORNADO 4108 HW AP

Model Year - 2018-2021

Model Type - SDNS 108 Hydro

Art.N - 2T1230281/AP18

Engine Model -

	Part No.	Details
1	MO325600087/2 Available to backorder	Ejection Guard From S.N DD316639	£29.57 £24.64
2	MO125510073/0 In stock	Fulcrum Pin	£7.66 £6.38
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
5	MO325600132/0 Available to backorder	Right Carter	£22.93 £19.11
6	MO125943010/0 In stock	Screw	£1.97 £1.64
7	MO325600133/0 Available to backorder	Left Carter	£22.93 £19.11
8	MO325270343/0 Available to backorder	Belt Guide Not for Kawasaki Engine FS691V	£1.55 £1.29
9	MO112728686/0 In stock	Screw Not for Kawasaki Engine FS691V	£1.55 £1.29
10	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
11	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
12	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.19 £5.16
13	MO112815200/0 In stock	Screw	£1.55 £1.29
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO112604899/0 In stock	Starlock Washer Rpco 308 D.8	£1.55 £1.29
