TORNADO 4108 HW - 2021-2022 - 2T1220481/AP21 - Stiga Ride On Mower Engine Diagram

Description

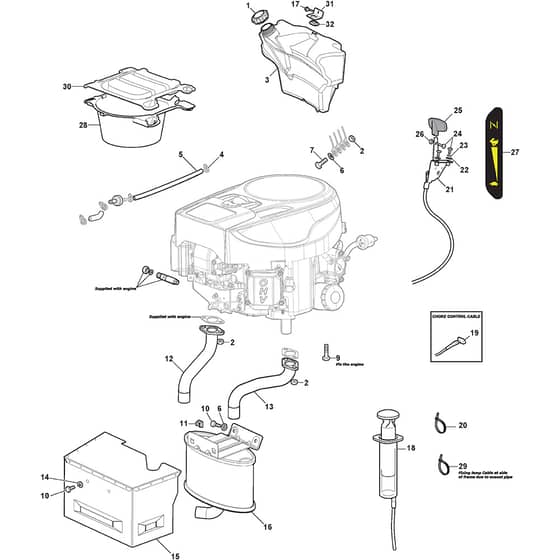

Stiga TORNADO 4108 HW Parts Diagram

Product Name - TORNADO 4108 HW

Model Year - 2021-2022

Model Type - SDSTL 108 Hydro

Art.N - 2T1220481/AP21

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125795001/1 In stock	Cap	£7.96 £6.63
2	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
3	MO325735132/0 Available to backorder	Fuel Tank [9 Litres] 9Lt	£61.38 £51.15
4	MO118375051/1 Available to backorder	Fair Led	£3.00 £2.50
5	MO325869057/0 Available to backorder	Fuel Tube	£20.56 £17.13
6	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
9	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
10	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
11	MO112360425/0 Available to backorder	Nut	£1.82 £1.52
12	MO118738278/0 Available to backorder	Right Exhaust Connection Tube	£32.38 £26.98
13	MO118738279/0 Available to backorder	Left Exhaust Connection Tube	£32.38 £26.98
14	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
15	MO382598077/0 Available to backorder	Muffler Protection To S.N 22LA3RON003026	£63.35 £52.79
15	MO382598077/1 Available to backorder	Muffler Protection From S.N 22LA3RON003027	£61.45 £51.21
16	MO182750003/0 Available to backorder	Muffler Assy	£251.32 £209.43
17	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
18	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
19	MO125090009/0 Available to backorder	Choke Control Cable From S.N 23JA3RON002050	£19.99 £16.66
19	MO125090003/0 In stock	Choke Control To S.N 23JA3RON002049	£19.99 £16.66
20	MO133320022/0 Available to backorder	Fastpoint Clamp	£1.55 £1.29
21	MO182000221/0 Available to backorder	Accelerator	£23.65 £19.71
22	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
23	MO112540020/0 Available to backorder	Washer	£1.55 £1.29
24	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
25	MO325394531/0 Available to backorder	Knob	£1.82 £1.52
26	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
27	MO114364617/0 Available to backorder	Throttle Label	£1.55 £1.29
28	MO325108112/0 Available to backorder	Conveyor if needed	£10.70 £8.92
29	MO133320027/0 Available to backorder	Cable	£1.55 £1.29
30	MO325263318/0 Available to backorder	Air Intake Grill Black	£12.82 £10.68
31	MO325755085/0 Available to backorder	Angle Bracket	£4.78 £3.98
