TORNADO 4108 H - 2017-2020 - 2T1810481/17 - Stiga Ride On Mower Transmission Diagram

Name: TORNADO 4108 H - 2017-2020 - 2T1810481/17 - Stiga Ride On Mower Transmission Diagram
SKU: tornado_4108_h_2t1810481_17_transmission-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 4108 H - 2017-2020 - 2T1810481/17 - Stiga Ride On Mower Transmission Diagram

Description

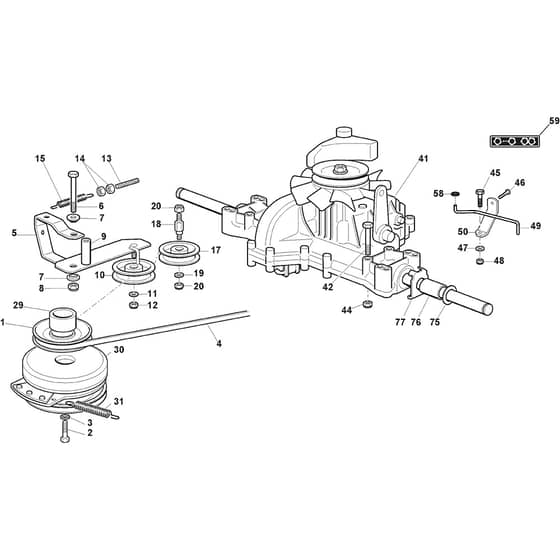

Stiga TORNADO 4108 H Parts Diagram

Product Name - TORNADO 4108 H

Model Year - 2017-2020

Model Type - TNS 108 Hydro SD

Art.N - 2T1810481/17

Engine Model - Stiga 7750

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125601566/1 Available to backorder	Pulley	£30.70 £25.58
2	MO112737320/0 In stock	Screw	£4.37 £3.64
3	MO112543000/0 Available to backorder	Washer	£1.55 £1.29
4	MO135062020/1 In stock	Trapezoidal Belt	£43.08 £35.90
5	MO382318165/2 Available to backorder	Lever	£27.74 £23.12
6	MO112793905/0 Available to backorder	Screw	£1.97 £1.64
7	MO125038002/1 In stock	Bushing	£1.55 £1.29
9	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
10	MO125601554/0 In stock	Pulley	£25.68 £21.40
13	MO125840010/1 Available to backorder	Tie Rod	£1.97 £1.64
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO125430219/1 Available to backorder	Spring	£3.67 £3.06
17	MO325601599/0 In stock	Pulley Bearing hole ø15	£19.14 £15.95
18	MO125510139/0 Available to backorder	Pin	£10.84 £9.03
19	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
30	MO118399062/1 Available to backorder	Electromagnetic Clutch	£341.58 £284.65
31	MO125430210/1 Available to backorder	Brake Spring	£2.68 £2.23
41	MO118400950/1 Available to backorder	Hydrostatic Transaxle - Tufftorq (K46F) (K46F)	£866.59 £722.16
42	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
44	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
45	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
46	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
47	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
48	MO112155000/0 In stock	Nut	£1.55 £1.29
49	MO125033129/0 Available to backorder	Rod	£6.34 £5.28
50	MO325785523/0 Available to backorder	Rear Support	£6.76 £5.63
58	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
59	MO114357423/2 Available to backorder	Label	£1.66 £1.38
75	MO112521410/0 Available to backorder	Washer	£1.82 £1.52
76	MO125160023/0 Available to backorder	Spacer	£7.31 £6.09
77	MO325670025/0 Available to backorder	Spacer Washer Tt	£4.08 £3.40
