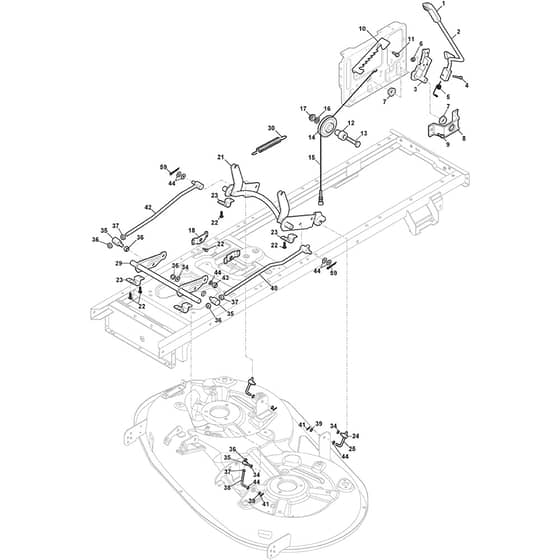

Tornado 398e - 2023 - 2T0660481/ST2S - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

Stiga Tornado 398e Parts Diagram

Product Name - Tornado 398e

Model Year - 2023

Model Type - SDST 98 Li 48 V1

Art.N - 2T0660481/ST2S

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £15.28 £12.73 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Lifting Axle Assy	£7.03 £5.86
4	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
5	MO125430261/0 Available to backorder	Spring	£1.40 £1.17
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.20 £5.17
10	MO325735515/0 Available to backorder	Steering Sector	£8.02 £6.68
11	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
12	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
13	MO125040636/1 Available to backorder	Bushing	£2.81 £2.34
14	MO125601579/0 Available to backorder	Pulley	£2.81 £2.34
15	MO382004629/1 Available to backorder	Deck Lifting Wire From S.N 24IA3RON005884	£11.81 £9.84
16	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.69 £1.41
18	MO325774757/0 Available to backorder	Fulcrum Clamp	£8.29 £6.91
21	MO382000705/0 Available to backorder	Rear Lifting Deck Axle Assy	£32.38 £26.98
22	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
23	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
25	MO125840041/0 Available to backorder	Pin	£5.64 £4.70
29	MO382000697/0 Available to backorder	Front Lifting Deck Axle Assy	£20.50 £17.08
30	MO125430218/1 Available to backorder	Spring	£5.76 £4.80
35	MO125510007/2 Available to backorder	Pin	£5.64 £4.70
37	MO112295200/0 In stock	Nut	£1.40 £1.17
38	MO125840012/1 Available to backorder	Tie Rod	£14.35 £11.96
40	MO382000699/0 Available to backorder	Lift Deck Rod Assy. Left Link	£12.11 £10.09
41	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
42	MO382000701/0 Available to backorder	Lift Deck Rod Assy. Right Link	£11.96 £9.97
43	MO112156602/0 In stock	Nut	£1.40 £1.17
44	MO325670008/1 In stock	Washer	£1.55 £1.29
59	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
