TORNADO 3108 H - 2020 - 2T1210481/ST1 - Stiga Ride On Mower Belt Protection Diagram

Description

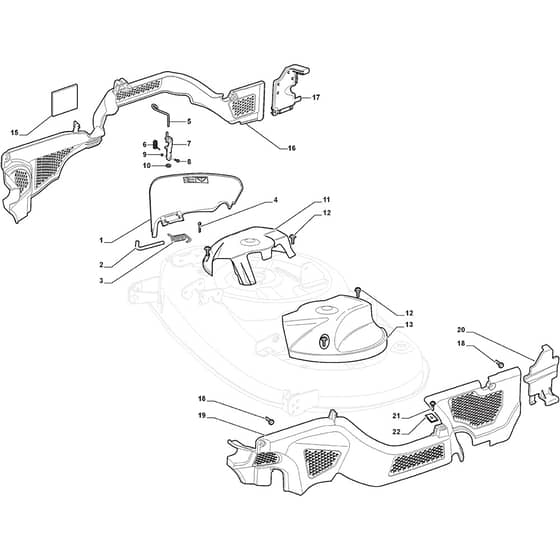

Stiga TORNADO 3108 H Parts Diagram

Product Name - TORNADO 3108 H

Model Year - 2020

Model Type - SDST 108 Hydro

Art.N - 2T1210481/ST1

Engine Model - ST 500

	Part No.	Details
1	MO325600087/2 Available to backorder	Ejection Guard	£29.57 £24.64
2	MO125510073/0 In stock	Fulcrum Pin	£7.66 £6.38
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
5	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
6	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
7	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.19 £5.16
8	MO112815200/0 In stock	Screw	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
11	MO325600088/0 Available to backorder	Right Belt Protection Carter	£22.03 £18.36
12	MO125943010/0 In stock	Screw	£1.97 £1.64
13	MO325600089/1 Available to backorder	Left Belt Protection	£22.30 £18.58
16	MO325060154/0 Available to backorder	Case	£32.38 £26.98
17	MO325600082/0 Available to backorder	Guard	£3.66 £3.05
18	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
19	MO325060155/0 Available to backorder	Case	£32.38 £26.98
20	MO325600083/0 Available to backorder	Guard	£3.66 £3.05
21	MO127943051/0 Available to backorder	Screw	£1.84 £1.53
22	MO112437506/0 Available to backorder	Double Plate	£2.53 £2.11
