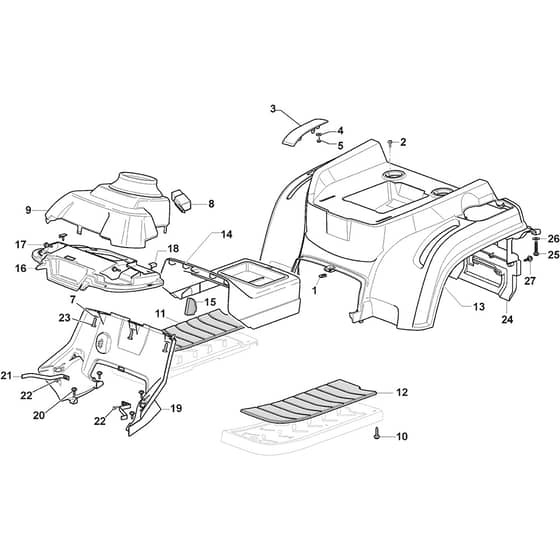

TORNADO 3108 H - 2019 - 2T1240281/ST1 - Stiga Ride On Mower Body Diagram

Name: TORNADO 3108 H - 2019 - 2T1240281/ST1 - Stiga Ride On Mower Body Diagram
SKU: tornado_3108_h_2t1240281_st1_body-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_3108_h_2t1240281_st1_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 3108 H - 2019 - 2T1240281/ST1 - Stiga Ride On Mower Body Diagram

Description

Stiga TORNADO 3108 H Parts Diagram

Product Name - TORNADO 3108 H

Model Year - 2019

Model Type - SDST 108 Hydro

Art.N - 2T1240281/ST1

Engine Model - Intek 5210 AVS

	Part No.	Details
1	MO112437506/0 Available to backorder	Plate	£2.53 £2.11
3	MO325207190/0 Available to backorder	Cover Not needed for Gear Models	£8.29 £6.91
4	MO112523050/0 In stock	Washer	£1.57 £1.31
5	MO112735403/0 In stock	Screw	£1.55 £1.29
8	MO9400-0384-01 Available to backorder	Hour Meter	£88.38 £73.65
9	MO325120288/0 Available to backorder	Dashboard Cover	£23.23 £19.36
11	MO325110384/0 Available to backorder	Right Footboard Cover AS OPTIONAL - Not present on all Assortment	£15.78 £13.15
12	MO325110385/0 Available to backorder	Left Footboard Cover AS OPTIONAL - Not present on all assortment	£15.78 £13.15
13	MO325110399/1 Available to backorder	Yellow Wheels Cover Yellow	£168.91 £140.76
14	MO325110463/0 Available to backorder	Grey Central Cover Grey NCS S8000-N	£38.11 £31.76
15	MO325207191/0 Available to backorder	Plate Not needed for Hydro Models	£1.97 £1.64
16	MO325120259/2 Available to backorder	Dashboard	£35.20 £29.33
18	MO325260003/0 Available to backorder	Grommet	£1.55 £1.29
19	MO325785298/0 Available to backorder	Dashboard Support	£29.56 £24.63
21	MO325270325/0 Available to backorder	Guide	£4.78 £3.98
22	MO112735599/0 In stock	Screw	£1.55 £1.29
24	MO325547208/3 Available to backorder	Rear Plate. Black	£19.63 £16.36
25	MO112735406/0 Available to backorder	Screw	£1.63 £1.36
26	MO112523040/0 In stock	Washer	£1.55 £1.29
27	MO125943010/0 In stock	Flanged Screw	£1.97 £1.64
