TORNADO 3108 H - 2015-2018 - 2T1230281/15 - Stiga Ride On Mower Belt Protection Diagram

Name: TORNADO 3108 H - 2015-2018 - 2T1230281/15 - Stiga Ride On Mower Belt Protection Diagram
SKU: tornado_3108_h_2t1230281_15_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Part No. tornado_3108_h_2t1230281_15_belt_protection-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

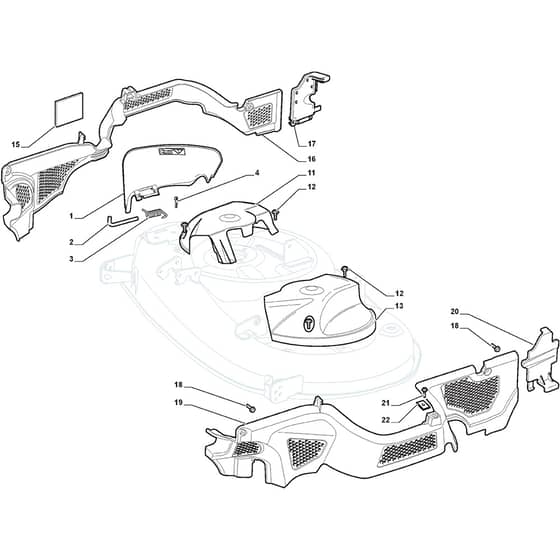

TORNADO 3108 H - 2015-2018 - 2T1230281/15 - Stiga Ride On Mower Belt Protection Diagram

Description

Stiga TORNADO 3108 H Parts Diagram

Product Name - TORNADO 3108 H

Model Year - 2015-2018

Model Type - SDS 108 Hydro

Art.N - 2T1230281/15

Engine Model - Intek 5210 AVS

	Part No.	Details
1	MO325600087/2 Available to backorder	Exit Protection From 01-9-2013	£29.57 £24.64
2	MO125510073/0 In stock	Fulcrum Pin	£7.66 £6.38
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 In stock	Cotter Pin	£1.55 £1.29
11	MO325600088/0 Available to backorder	Right Belt Protection Carter	£22.03 £18.36
12	MO125943010/0 In stock	Screw	£1.97 £1.64
13	MO325600089/1 Available to backorder	Left Belt Protection From S.N DD267907	£22.30 £18.58
16	MO325060154/0 Available to backorder	Case	£32.38 £26.98
17	MO325600082/0 Available to backorder	Guard	£3.66 £3.05
18	MO125943011/0 Available to backorder	Screw	£9.52 £7.93
19	MO325060155/0 Available to backorder	Case	£32.38 £26.98
20	MO325600083/0 Available to backorder	Guard	£3.66 £3.05
21	MO127943051/0 Available to backorder	Screw	£1.84 £1.53
22	MO112437506/0 Available to backorder	Double Plate	£2.53 £2.11
