TORNADO 3098 H - 2019 - 2T0610281/STX - Stiga Ride On Mower Cutting Plate Lifting Diagram

Name: TORNADO 3098 H - 2019 - 2T0610281/STX - Stiga Ride On Mower Cutting Plate Lifting Diagram
SKU: tornado_3098_h_2t0610281_stx_cutting_plate_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. tornado_3098_h_2t0610281_stx_cutting_plate_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

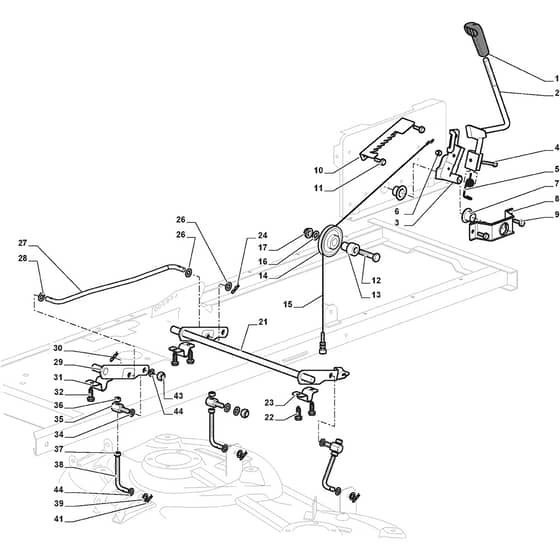

TORNADO 3098 H - 2019 - 2T0610281/STX - Stiga Ride On Mower Cutting Plate Lifting Diagram

Description

Stiga TORNADO 3098 H Parts Diagram

Product Name - TORNADO 3098 H

Model Year - 2019

Model Type - SDS 98 Hydro

Art.N - 2T0610281/STX

Engine Model -

	Part No.	Details
1	MO325394533/0 Available to backorder	Knob	£3.10 £2.58
2	MO382318229/0 In stock	Lever	Was £16.25 £13.54 Special Price £9.79 £8.16
3	MO382318231/1 Available to backorder	Lifting Axle Assy From S.N 20JA3RON003035	£7.02 £5.85
4	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
5	MO125430261/0 Available to backorder	Spring	£1.39 £1.16
6	MO112154510/0 In stock	Nut	£1.55 £1.29
7	MO325038006/0 Available to backorder	Bushing	£1.55 £1.29
8	MO325785297/0 Available to backorder	Support	£6.19 £5.16
9	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
10	MO325735515/0 Available to backorder	Steering Sector	£8.00 £6.67
44	MO112521360/0 In stock	Washer M10 10.5 X 20 X 2	£1.55 £1.29
