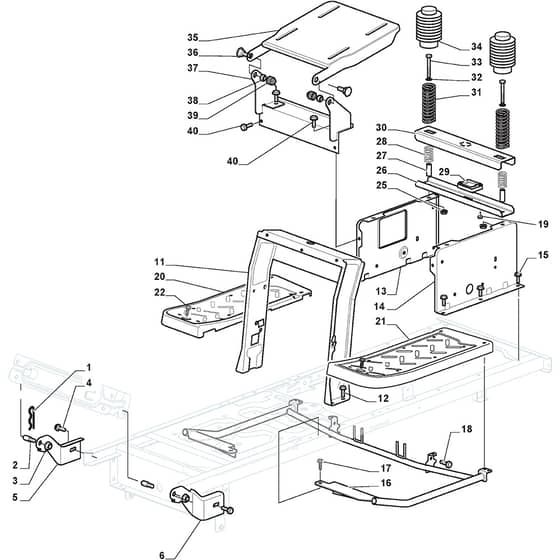

TORNADO 2098 H - 2019-2021 - 2T0630481/ST1 - Stiga Ride On Mower Frame Diagram

Description

Stiga TORNADO 2098 H Parts Diagram

Product Name - TORNADO 2098 H

Model Year - 2019-2021

Model Type - SDST 98 Hydro

Art.N - 2T0630481/ST1

Engine Model - ST 500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
2	MO125510169/1 Available to backorder	Pin From S.N 19DA3RON003315	£2.40 £2.00
3	MO112154210/0 Available to backorder	Nut To 31-8-2013	£1.69 £1.41
3	MO112155000/0 In stock	Nut From 01-9-2013	£1.55 £1.29
5	MO325547225/0 Available to backorder	Right Plate	£6.34 £5.28
6	MO325547227/0 Available to backorder	Left Plate	£6.76 £5.63
11	MO382785169/1 Available to backorder	Steering Column Support	£57.71 £48.09
13	MO325785331/2 Available to backorder	Right Seat Support	£32.26 £26.88
14	MO325785333/2 Available to backorder	Left Seat Support	£32.26 £26.88
16	MO382785197/0 Available to backorder	Footboard Support For Hydrostatic Models	£58.56 £48.80
18	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
19	MO112728686/0 In stock	Screw	£1.55 £1.29
20	MO325500041/1 Available to backorder	Right Footboard	£37.79 £31.49
21	MO325500043/1 Available to backorder	Left Footboard	£42.23 £35.19
22	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
25	MO112293201/0 In stock	Nut	£1.69 £1.41
26	MO325820109/1 Available to backorder	Seat Support	£9.58 £7.98
27	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
28	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
29	MO325785379/1 Available to backorder	Support From 01-9-2013	£1.55 £1.29
30	MO325820111/1 Available to backorder	Seat Switch Support Bar	£10.00 £8.33
31	MO125430264/1 Available to backorder	Spring	£9.37 £7.81
32	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
33	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
34	MO325600148/0 Available to backorder	Hood	£1.40 £1.17
35	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
36	MO122524970/2 Available to backorder	Fulcrum Pin From S.N 88152	£1.90 £1.58
36	MO122524970/3 Available to backorder	Pin From S.N 88153	£1.69 £1.41
37	MO382820151/0 Available to backorder	Seat Support To S.N 20EA3RON000611	£24.19 £20.16
37	MO382820151/1 Available to backorder	Seat Support From S.N 20EA3RON000612	£24.07 £20.06
38	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
39	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
