TORNADO 2098 H - 2019-2021 - 2T0630481/ST1 - Stiga Ride On Mower Brake and Gearbox Controls Diagram

Name: TORNADO 2098 H - 2019-2021 - 2T0630481/ST1 - Stiga Ride On Mower Brake and Gearbox Controls Diagram
SKU: tornado_2098_h_2t0630481_st1_brake_and_gearbox_controls-group
Price: 1.16 GBP
Availability: InStock

Part No. tornado_2098_h_2t0630481_st1_brake_and_gearbox_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 2098 H - 2019-2021 - 2T0630481/ST1 - Stiga Ride On Mower Brake and Gearbox Controls Diagram

Description

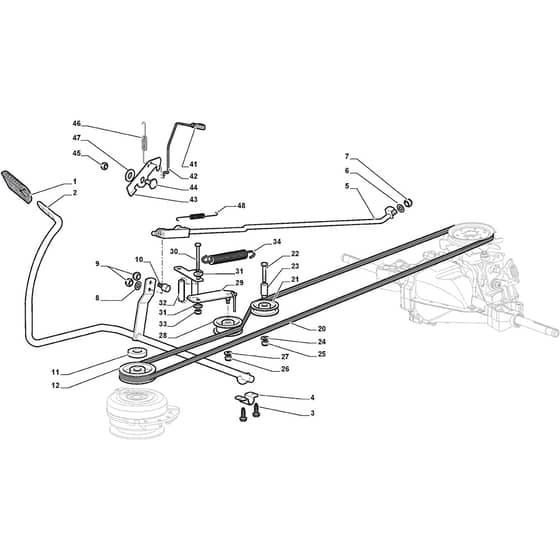

Stiga TORNADO 2098 H Parts Diagram

Product Name - TORNADO 2098 H

Model Year - 2019-2021

Model Type - SDST 98 Hydro

Art.N - 2T0630481/ST1

Engine Model - ST 500

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.18 £5.98
2	MO382000641/1 Available to backorder	Brake Pedal Assembly From S.N 19FA3RON000275	£52.08 £43.40
3	MO112735599/0 In stock	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
5	MO382000576/0 Available to backorder	Brake Control Rod Assy	£30.98 £25.82
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.39 £1.16
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin From S.N 19DA3RON003315	£3.52 £2.93
10	MO125510116/0 Available to backorder	Pin To S.N 19DA3RON003314	£3.66 £3.05
11	MO125160021/0 Available to backorder	Spacer	£7.52 £6.27
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062003/1 In stock	Belt From 01-9-2015	£37.57 £31.31
21	MO125601555/0 In stock	Pulley Bearing hole ø16 To 31-8-2013	£29.28 £24.40
21	MO325601599/0 In stock	Pulley Bearing hole ø15 From 01-9-2013	£19.18 £15.98
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer From S.N 19JA3RON001862	£2.82 £2.35
24	MO112523060/0 In stock	Washer	£1.55 £1.29
48	MO125430269/2 Available to backorder	Hydro Brake Pedal Spring	£2.40 £2.00
