TORNADO 2098 AP - 2017-2018 - 2T0510401/AP17 - Stiga Ride On Mower Options Diagram

Description

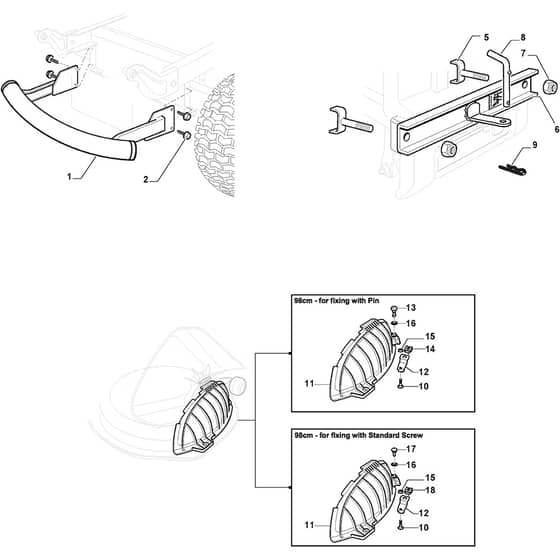

Stiga TORNADO 2098 AP Parts Diagram

Product Name - TORNADO 2098 AP

Model Year - 2017-2018

Model Type - SD 98

Art.N - 2T0510401/AP17

Engine Model -

	Part No.	Details
1	MO382869038/0 Available to backorder	Muffler Protection	£39.42 £32.85
2	MO112735599/0 In stock	Screw	£1.55 £1.29
5	MO382650211/0 Available to backorder	Stiffening	£5.06 £4.22
6	MO382033111/0 Available to backorder	Rod	£33.79 £28.16
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO125510021/1 In stock	Hitch Pin	£11.10 £9.25
9	MO124487999/0 Available to backorder	Spring Pin	£1.84 £1.53
10	MO112815206/0 In stock	Screw	£1.55 £1.29
11	MO325140105/0 In stock	Deflector	£12.67 £10.56
12	MO325785471/0 In stock	Pin	£2.94 £2.45
13	MO125580040/0 In stock	Stake for fixing with Pin	£3.10 £2.58
14	MO118737221/0 In stock	Plate for fixing with Pin	£7.02 £5.85
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
18	MO112437507/0 Available to backorder	Rapid Fixing Plate M6	£1.70 £1.42
