TORNADO 2098 - 2019-2021 - 2T0510481/ST2 - Stiga Ride On Mower Bodywork Diagram

Name: TORNADO 2098 - 2019-2021 - 2T0510481/ST2 - Stiga Ride On Mower Bodywork Diagram
SKU: tornado_2098_2t0510481_st2_bodywork-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TORNADO 2098 - 2019-2021 - 2T0510481/ST2 - Stiga Ride On Mower Bodywork Diagram

Description

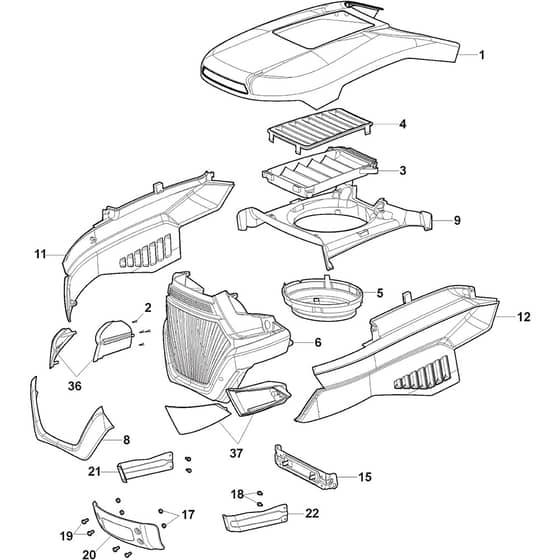

Stiga TORNADO 2098 Parts Diagram

Product Name - TORNADO 2098

Model Year - 2019-2021

Model Type - SDST 98

Art.N - 2T0510481/ST2

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325077005/0 Available to backorder	Upper Engine Hood. Yellow	£125.29 £104.41
2	MO112728706/0 In stock	Screw	£1.55 £1.29
3	MO325263313/0 Available to backorder	Air Intake Grill Only for Twin Cylinder Engine	£18.31 £15.26
4	MO325263314/0 Available to backorder	Air Intake Grill Only for Twin Cylinder Engine	£17.60 £14.67
5	MO325108108/0 Available to backorder	Conveyor For B&S Engine and ST. Single Cylinder Engine - Not for B&S 7200	£11.69 £9.74
6	MO325076997/0 Available to backorder	Frontal Bonnet	£61.93 £51.61
8	MO325076998/1 Available to backorder	Lower Hood. Front Grey NCS8000N	£15.43 £12.86
9	MO325108109/0 Available to backorder	Air Intake Grill Grey NCS S8000-N	£39.42 £32.85
11	MO325207283/0 Available to backorder	Bonnet Right Side Cover. Grey Grey NCS S8000-N	£56.02 £46.68
12	MO325207284/0 Available to backorder	Bonnet Left Side Cover. Grey Grey NCS S8000-N	£56.02 £46.68
15	MO325785551/0 Available to backorder	Engine Hood Support	£11.08 £9.23
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
19	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
20	MO382263501/0 Available to backorder	Bumper	£35.20 £29.33
21	MO382785255/0 Available to backorder	Right Support	£30.97 £25.81
22	MO382785257/0 Available to backorder	Left Support	£30.97 £25.81
36	MO382185516/0 Available to backorder	Right Lamp Light Assy For Lamp Version	£39.42 £32.85
37	MO382185517/0 Available to backorder	L.H Lamp Light Grill	£39.42 £32.85
