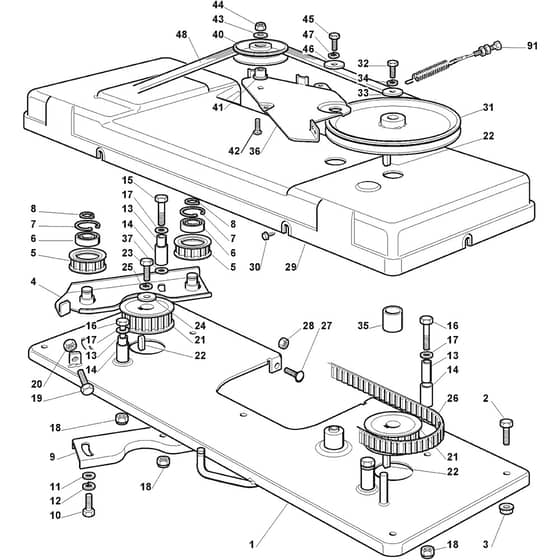

TN 220HE - 2010-2012 - 2T6682673/SBR - Castel Garden Ride On Mower Blade Engagement Diagram

Description

Castel Garden TN 220HE Parts Diagram

Product Name - TN 220HE

Model Year - 2010-2012

Model Type - TX 122 Hydro

Art.N - 2T6682673/SBR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547031/3 Available to backorder	Plate Transmission	£127.00 £105.83
2	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.69 £1.41
4	MO382785084/3 Available to backorder	Support	£32.38 £26.98
5	MO125601561/0 Available to backorder	Pulley	£52.08 £43.40
6	MO119216048/0 In stock	Bearing	£18.31 £15.26
7	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
8	MO112609200/0 Available to backorder	Seeger	£1.55 £1.29
9	MO325650037/1 Available to backorder	Pulley Stiffening	£8.45 £7.04
13	MO125160003/2 Available to backorder	Spacer	£1.82 £1.52
14	MO125038000/0 Available to backorder	Bushing	£1.55 £1.29
15	MO112691700/0 In stock	Screw	£1.82 £1.52
16	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
19	MO112793900/0 Available to backorder	Screw	£1.55 £1.29
20	MO112293200/0 In stock	Nut	£1.55 £1.29
21	MO125601562/0 Available to backorder	Pulley	£71.08 £59.23
22	MO112139480/0 Available to backorder	Feather	£1.69 £1.41
26	MO135065601/0 Available to backorder	Belt	£161.59 £134.66
27	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
28	MO112292102/0 In stock	Nut	£1.69 £1.41
29	MO125060101/2 Available to backorder	Protection	£23.23 £19.36
30	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
31	MO125601549/0 Available to backorder	Pulley	£50.68 £42.23
33	MO125670007/0 In stock	Washer	£1.97 £1.64
35	MO125160002/1 Available to backorder	Spacer	£4.37 £3.64
36	MO325318119/1 Available to backorder	Lever	£15.48 £12.90
40	MO125601555/0 In stock	Pulley Bearing hole ø16	£29.28 £24.40
41	MO125160007/1 Available to backorder	Spacer From 01-9-2010	£3.24 £2.70
42	MO112818900/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
44	MO112155000/0 In stock	Nut	£1.55 £1.29
45	MO112793102/0 In stock	Screw	£1.55 £1.29
46	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
47	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
48	MO135062825/0 Available to backorder	Belt V-Belt	£83.51 £69.59
48	MO135062814/0 In stock	Belt Kevlar	£39.05 £32.54
91	MO182004609/0 In stock	Blade Engage Cable	£23.51 £19.59
