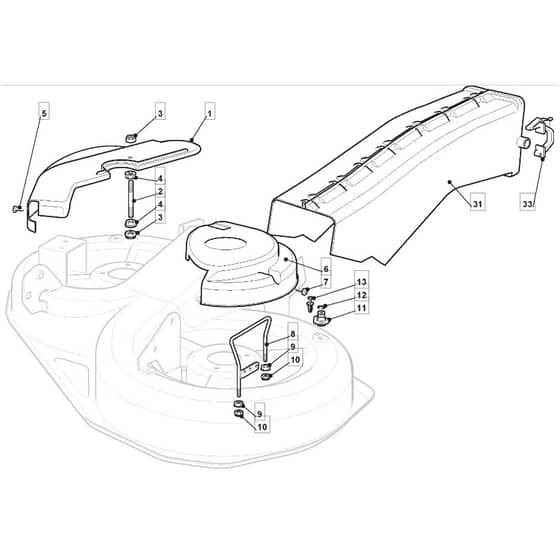

TM 35 - 2009 - 2T2232433/BM9 - Mountfield Ride On Mower Guards Diagram

Name: TM 35 - 2009 - 2T2232433/BM9 - Mountfield Ride On Mower Guards Diagram
SKU: tm_35_2t2232433_bm9_guards-group
Price: 1.29 GBP
Availability: InStock

Part No. tm_35_2t2232433_bm9_guards-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TM 35 - 2009 - 2T2232433/BM9 - Mountfield Ride On Mower Guards Diagram

Description

Mountfield TM 35 Parts Diagram

Product Name - TM 35

Model Year - 2009

Model Type - NJTP 92

Art.N - 2T2232433/BM9

	Part No.	Details
1	MO325060111/0 Available to backorder	Right Belt Protection Carter	£15.14 £12.62
4	MO112293201/0 In stock	Nut	£1.70 £1.42
5	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
6	MO325060112/0 Available to backorder	Left Belt Protection	£16.67 £13.89
8	MO382270301/0 Available to backorder	Belt Guide	£48.83 £40.69
10	MO112155000/0 In stock	Nut	£1.55 £1.29
11	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
12	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
13	MO112500030/0 In stock	Rivet	£1.55 £1.29
31	MO382108008/1 In stock	Conveyor	£67.57 £56.31
33	MO325774373/0 In stock	Release Clamp	£2.94 £2.45
