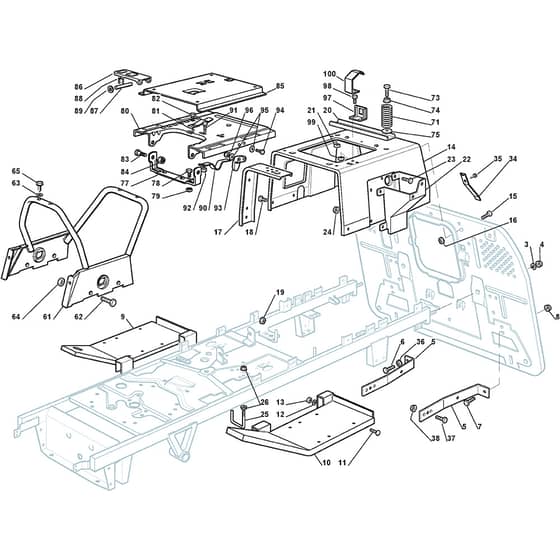

Mountfield TM 22 48 H Parts Diagram

Product Name - TM 22 48 H

Model Year - 2010

Model Type - TCP 122 Hydro

Art.N - 2T1310233/M10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
4	MO112295200/0 In stock	Nut	£1.40 £1.17
5	MO325774273/2 Available to backorder	Stiffening	£8.87 £7.39
6	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
7	MO112793102/0 In stock	Screw	£1.55 £1.29
9	MO382510041/2 Available to backorder	Right Footboard Support	£80.84 £67.37
10	MO382510043/2 Available to backorder	Left Footboard Support	£80.84 £67.37
11	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.49 £1.24
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support	£68.99 £57.49
17	MO325650065/1 Available to backorder	Stiffening	£9.28 £7.73
20	MO325650067/1 Available to backorder	Stiffening	£5.92 £4.93
21	MO112360420/0 Available to backorder	Nut	£1.55 £1.29
22	MO325785137/1 Available to backorder	Support	£35.20 £29.33
23	MO112791011/0 Available to backorder	Screw	£1.40 £1.17
25	MO125580019/1 Available to backorder	Belt Guide Peg	£3.94 £3.28
26	MO112292102/0 In stock	Nut	£1.69 £1.41
34	MO125430238/1 Available to backorder	Spring	£4.08 £3.40
36	MO112293200/0 In stock	Nut	£1.55 £1.29
61	MO382650041/1 Available to backorder	Chassis	£42.01 £35.01
63	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
65	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
71	MO125430205/1 Available to backorder	Spring	£5.92 £4.93
73	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
75	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
77	MO382774305/0 Available to backorder	Seat Clamp Support	£11.24 £9.37
78	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
79	MO112293201/0 In stock	Nut	£1.69 £1.41
80	MO325785149/2 Available to backorder	Fixed Seat Support	£24.00 £20.00
81	MO125430203/1 Available to backorder	Spring	£3.38 £2.82
82	MO112731580/0 Available to backorder	Screw	£1.55 £1.29
100	MO325430255/0 Available to backorder	Seat Protection Spring	£3.94 £3.28
