Echo TM-2050 LOW CUT FAIRWAY Cutting head Low Cut

Name: Echo TM-2050 LOW CUT FAIRWAY Cutting head Low Cut
SKU: tm_2050_low_cut_fairway_cutting_head_low_cut-group
Price: 0.04 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Echo TM-2050 LOW CUT FAIRWAY Cutting head Low Cut

Description

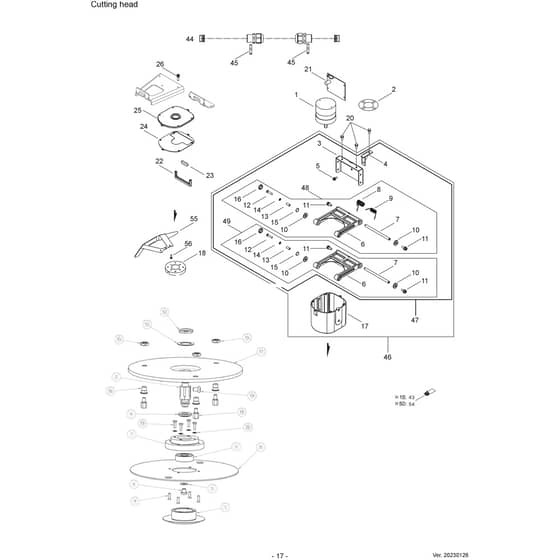

Echo TM-2050 LOW CUT FAIRWAY - Cutting head Low Cut - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECERYB03000001 Available to backorder	Cutting Head Motor	£221.28 £184.40
2	ECERYB01500009 Available to backorder	Gasket	£1.44 £1.20
2	ECERYB00300084 Available to backorder	[L2] Cutting Disc Shaft	£18.40 £15.33
3	ECERYB02100003 Available to backorder	[L3] Bearing Holder	£9.08 £7.57
3	ECERYB00000042 Available to backorder	Bracket Unit	£38.84 £32.37
4	ECERYB00000044 Available to backorder	Guard	£33.90 £28.25
4	ECERYB00300015 Available to backorder	[L4] Coller	£3.78 £3.15
5	ECERYB70606000 Available to backorder	[L5] Washer M6	£0.48 £0.40
6	ECERYB01600009 Available to backorder	Stay	£15.76 £13.13
6	ECERYB51506006 Available to backorder	[L6] Bolt M6X6	£2.14 £1.78
7	ECERYB00300059 Available to backorder	[L7] Bearing Holder Cup	£69.66 £58.05
7	ECERYB00300013 Available to backorder	Arm Shaft	£44.86 £37.38
8	ECERYB02300001 Available to backorder	Torsion Spring	£4.30 £3.58
8	ECERYB00300016 Available to backorder	[L8] Anti Friction Disc	£18.62 £15.52
9	ECERYB02300002 Available to backorder	Torsion Spring	£4.30 £3.58
10	ECERYB01600015 Available to backorder	Cap	£9.42 £7.85
11	ECERYB01600019 Available to backorder	[L11] Disc Balde	£37.68 £31.40
11	ECERYB51806015 Available to backorder	Bolt M6X15	£0.86 £0.72
12	ECERYB52306024 Available to backorder	Bolt M6X24	£4.12 £3.43
12	ECERYB80418000 Available to backorder	[L12] Nut M18	£18.62 £15.52
13	ECERYB00300014 Available to backorder	Collar	£2.92 £2.43
13	ECERYB70818000 Available to backorder	[L13] Washer M18	£0.36 £0.30
14	ECERYB51606008 Available to backorder	[L14] Screw M6X8	£2.96 £2.47
14	ECERYB70706000 Available to backorder	Washer M6	£0.34 £0.28
15	ECERYB80108000 Available to backorder	[L15] Nut M8	£0.48 £0.40
15	ECERYB01700000 Available to backorder	Ring O	£0.78 £0.65
16	ECERYB01600014 Available to backorder	Cap	£1.72 £1.43
16	ECERYB00300005 Available to backorder	[L16] Cutting Head Insert	£5.18 £4.32
17	ECERYB00600000 Available to backorder	Motor Case	£58.48 £48.73
18	ECERYB00300058 Available to backorder	[L18] Blade Spacer	£7.48 £6.23
18	ECERYB01600010 Available to backorder	Guard	£14.70 £12.25
20	ECERYB52706016 Available to backorder	Screw M6X16	£1.38 £1.15
20	ECERYB70003000 Available to backorder	[L20] Washer M3	£0.05 £0.04
21	ECERYB03200003 Available to backorder	Cutting Drive Card	£189.84 £158.20
21	ECERYB01700001 Available to backorder	[L21] V-Ring	£5.58 £4.65
22	ECERYB01600011 Available to backorder	Cushion	£4.00 £3.33
23	ECERYB01600012 Available to backorder	Cushion	£1.60 £1.33
24	ECERYB01500008 Available to backorder	Gasket	£3.88 £3.23
25	ECERYB00600001 Available to backorder	Cap	£17.62 £14.68
43	ECERYB06220016 Available to backorder	Kit 15 Blades	£46.36 £38.63
45	ECERYB01200014 Available to backorder	Cable Gland Nut	£1.36 £1.13
46	ECERYB06220001 Available to backorder	Cutting Head Kit	£232.20 £193.50
47	ECERYB06220002 Available to backorder	Cutting Head Kit	£196.90 £164.08
48	ECERYB06220009 Available to backorder	Upper Stay Kit	£99.38 £82.82
49	ECERYB06220010 Available to backorder	Lower Stay Kit	£89.60 £74.67
54	ECERYB06220027 Available to backorder	Kit 50 Blades	£90.72 £75.60
56	ECERYB51904016 Available to backorder	Bolt M4X16	£0.54 £0.45
