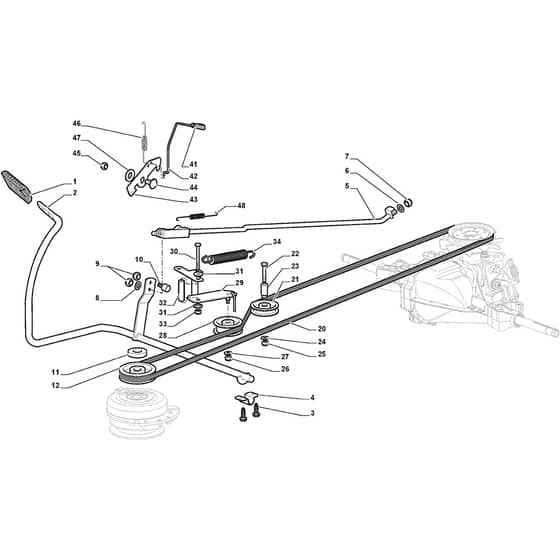

TM 19 43 H - 2010 - 2T1210233/MF0 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Name: TM 19 43 H - 2010 - 2T1210233/MF0 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram
SKU: tm_19_43_h_2t1210233_mf0_brake_and_gearbox_controls-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TM 19 43 H - 2010 - 2T1210233/MF0 - Mountfield Ride On Mower Brake and Gearbox Controls Diagram

Description

Mountfield TM 19 43 H Parts Diagram

Product Name - TM 19 43 H

Model Year - 2010

Model Type - SD 108 Hydro

Art.N - 2T1210233/MF0

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110409/0 Available to backorder	Clamp Cover	£7.19 £5.99
2	MO382000641/1 Available to backorder	Brake Pedal Assembly From S.N 19FA3RON000275	£52.08 £43.40
3	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
4	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
5	MO382000576/0 Available to backorder	Brake Control Rod Assy	£30.97 £25.81
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO112156602/0 In stock	Nut	£1.40 £1.17
8	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
10	MO125510166/0 Available to backorder	Pin From S.N 19DA3RON003315	£3.52 £2.93
10	MO125510116/0 Available to backorder	Pin To S.N 19DA3RON003314	£3.67 £3.06
11	MO125160021/0 Available to backorder	Spacer	£5.63 £4.69
12	MO125601577/0 Available to backorder	Pulley	£45.04 £37.53
20	MO135062003/1 In stock	Belt From 01-9-2015	£41.75 £34.79
21	MO325601599/0 In stock	Pulley Bearing hole ø15 From 01-9-2013	£19.14 £15.95
21	MO125601555/0 In stock	Pulley Bearing hole ø16 To 31-8-2013	£29.28 £24.40
22	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
23	MO125160107/0 Available to backorder	Spacer From S.N 19JA3RON001862	£2.81 £2.34
28	MO125601554/0 In stock	Pulley	£25.68 £21.40
29	MO382318245/1 Available to backorder	Lever	£19.70 £16.42
30	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
31	MO125038021/0 Available to backorder	Bushing From S.N DD266856	£1.26 £1.05
31	MO125038002/1 In stock	Bushing To S.N DD266855	£1.55 £1.29
32	MO125160027/0 Available to backorder	Spacer	£2.53 £2.11
34	MO125430262/0 Available to backorder	Spring	£5.76 £4.80
41	MO125394509/1 In stock	Knob From 01-9-2013	£2.44 £2.03
42	MO125033113/0 Available to backorder	Rod From 01-9-2013	£3.38 £2.82
42	MOREPLA0000050 Available to backorder	Rod To 31-8-2013	£5.82 £4.85
43	MO325253011/1 Available to backorder	Hook From 01-9-2011	£3.67 £3.06
44	MO122524970/2 Available to backorder	Fulcrum Pin From S.N 88152	£1.90 £1.58
44	MO122524970/3 Available to backorder	Pin From S.N 88153	£1.69 £1.41
45	MO112155000/0 In stock	Nut	£1.55 £1.29
46	MO125430213/0 Available to backorder	Spring	£1.69 £1.41
47	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
48	MO125430269/2 Available to backorder	Hydro Brake Pedal Spring	£2.40 £2.00
