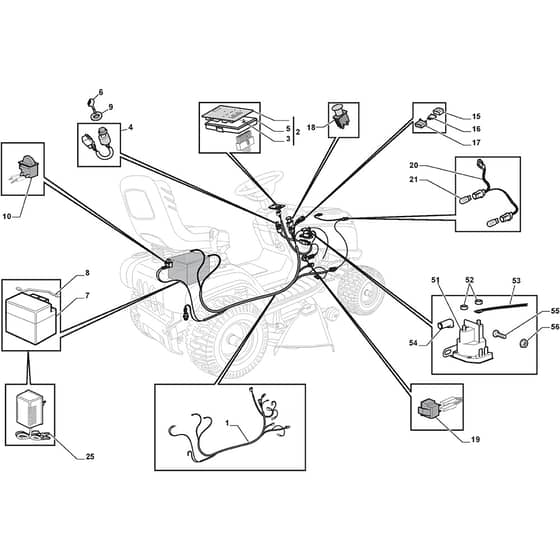

Mountfield TM 15.38 H Parts Diagram

Product Name - TM 15.38 H

Model Year - 2010

Model Type - SD 98 Hydro

Art.N - 2T0620433/M10

Engine Model -

	Part No.	Details
1	MO182040196/2 Available to backorder	Complete Wiring Assembly For Hydro Models From 01-9-2014	£147.89 £123.24
2	MO382722471/2 In stock	Electronic Card From 01-9-2014	£46.37 £38.64
3	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
4	MO118450075/1 In stock	Starting Switch From 01-9-2014	£24.22 £20.18
6	MO118210023/0 In stock	Starting Key	£7.02 £5.85
7	MO118120068/0 In stock	Battery 12V 18Ah	£113.47 £94.56
8	MO125430265/1 Available to backorder	Spring	£1.84 £1.53
9	MO118400863/0 Available to backorder	Screwed Ring	£1.70 £1.42
10	MO119410633/0 Available to backorder	Seat Microswitch	£6.26 £5.22
15	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
16	MO133340040/0 Available to backorder	Fuse 10 A	£2.24 £1.87
16	MO133340036/0 Available to backorder	Fuse 25 A	£1.70 £1.42
17	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
18	MO118450073/0 In stock	Clutch Switch Red	£14.93 £12.44
19	MO119410622/1 In stock	Microswitch N.O. - Black	£6.64 £5.53
21	MO118459100/0 Available to backorder	Lamp For Lights	£2.22 £1.85
25	MO1134-9250-01 In stock	Battery Charger 12V 1A - Ce Plugg EU plug	£60.08 £50.07
51	MO118736112/0 In stock	Solenoid	£38.00 £31.67
52	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
53	MO125065002/0 Available to backorder	Cable	£10.50 £8.75
54	MO118564864/1 Available to backorder	Protection	£5.92 £4.93
55	MO112790781/0 In stock	Screw	£1.55 £1.29
56	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
