Echo TM-1050 FAIRWAY LOW CUT Wheel, Motor and Gear box

Description

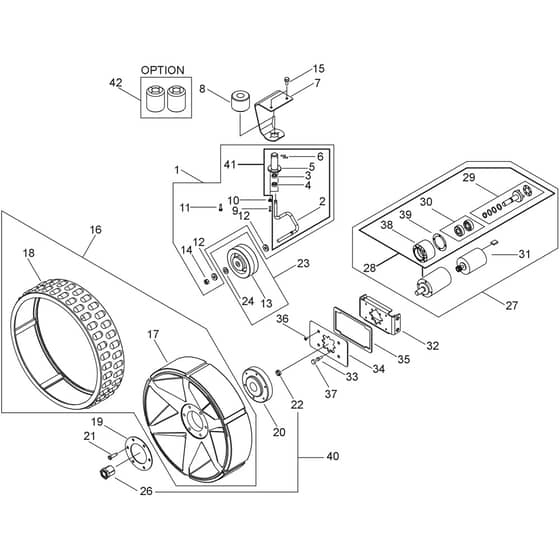

Echo TM-1050 FAIRWAY LOW CUT - Wheel, Motor and Gear box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECERYB06220028 Available to backorder	Front Wheel Pivot	£56.14 £46.78
2	ECERYB00300047 Available to backorder	Wheel Axis	£58.26 £48.55
3	ECERYB02100001 Available to backorder	Ball Bearing	£8.68 £7.23
4	ECERYB01500007 Available to backorder	Radial Seal	£2.62 £2.18
5	ECERYB01300012 Available to backorder	Hub	£23.68 £19.73
6	ECERYB90003012 Available to backorder	Pin 3X12	£6.02 £5.02
7	ECERYB00000032 Available to backorder	Front Susp. Spring	£51.80 £43.17
8	ECERYB00300034 Available to backorder	Fix Front Wheel	£48.90 £40.75
9	ECERYB50303012 Available to backorder	Screw M3X12	£0.48 £0.40
10	ECERYB70003000 Available to backorder	Washer M3	£0.05 £0.04
11	ECERYB50229016 Available to backorder	Screw St2.9X16	£0.48 £0.40
12	ECERYB71508000 Available to backorder	Thick Washer M8	£3.10 £2.58
13	ECERYB02000001 Available to backorder	Front Wheel	£36.66 £30.55
14	ECERYB80008000 Available to backorder	Nut M8	£0.82 £0.68
15	ECERYB52706016 Available to backorder	Screw M6X16	£1.38 £1.15
16	ECERYB06220067 Available to backorder	Rear Wheel	£270.96 £225.80
17	ECERYB01600036 Available to backorder	Rear Wheel	£104.70 £87.25
18	ECERYB01600037 Available to backorder	Rear Tire	£109.92 £91.60
19	ECERYB00000059 Available to backorder	Rear Wheel Flange	£18.88 £15.73
20	ECERYB00300038 Available to backorder	Wheel Hub	£67.36 £56.13
21	ECERYB51705020 Available to backorder	Screw M5X20	£2.56 £2.13
22	ECERYB00300057 Available to backorder	Spacer	£5.62 £4.68
23	ECERYB06220116 Available to backorder	New Front Wheel	£41.28 £34.40
24	ECERYB70008000 Available to backorder	Washer M8	£0.48 £0.40
26	ECERYB00200000 Available to backorder	Shaft-Hub Connection	£101.98 £84.98
27	ECERYB03000009 Available to backorder	Gearmotor	£535.20 £446.00
28	ECERYB03000007 Available to backorder	Gearbox	£332.40 £277.00
29	ECERYB06220024 Available to backorder	Gear Shaft Kit	£128.72 £107.27
30	ECERYB06220025 Available to backorder	Gear Box Bearings	£47.78 £39.82
31	ECERYB06220023 Available to backorder	Motor With Pinion	£296.88 £247.40
32	ECERYB00000056 Available to backorder	Geared Motor Support	£67.84 £56.53
33	ECERYB50305014 Available to backorder	Screw M5X14	£0.40 £0.33
34	ECERYB00000057 Available to backorder	Geared Motor Joint	£30.54 £25.45
35	ECERYB01500004 Available to backorder	Gearmotor Gasket	£11.16 £9.30
36	ECERYB50404008 Available to backorder	Screw M4X8	£0.48 £0.40
37	ECERYB01100001 Available to backorder	Motor Plate Cap	£0.60 £0.50
38	ECERYB00300050 Available to backorder	Output Flange	£175.14 £145.95
39	ECERYB01500016 Available to backorder	Gasket	£8.86 £7.38
40	ECERYB06220041 Available to backorder	Ktr With Spacer Kit	£107.40 £89.50
41	ECERYB06220064 Available to backorder	Wheel Hub	£48.78 £40.65
42	ECERYB06200024 Available to backorder	Front Counterweights	£189.60 £158.00
