Echo TM-1050 DRIVING RANGE Head Lifting

Name: Echo TM-1050 DRIVING RANGE Head Lifting
SKU: tm_1050_driving_range_head_lifting-group
Price: 0.29 GBP
Availability: InStock

Part No. tm_1050_driving_range_head_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

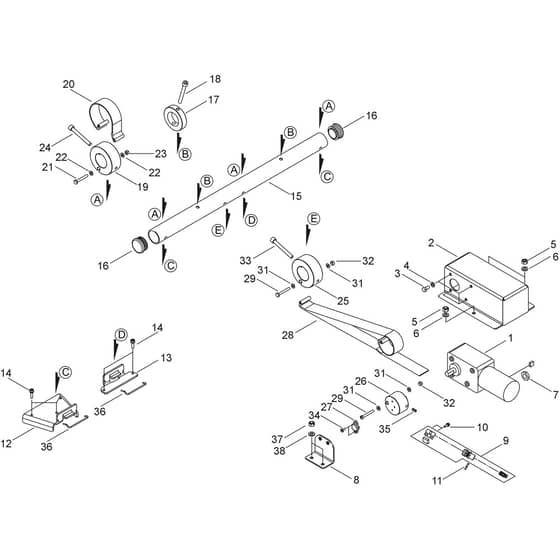

Echo TM-1050 DRIVING RANGE - Head Lifting - Parts Diagram

	Part No.	Details
1	ECERYB03300161 Available to backorder	Lifting Motor	£265.44 £221.20
2	ECERYB00000217 Available to backorder	Lifting Motor Cover	£45.58 £37.98
3	ECERYB50305010 Available to backorder	Screw M5X10	£0.48 £0.40
4	ECERYB70005000 Available to backorder	Washer M5	£0.48 £0.40
5	ECERYB80006000 Available to backorder	Nut M6	£0.35 £0.29
6	ECERYB70006000 Available to backorder	Washer M6	£0.48 £0.40
8	ECERYB00000024 Available to backorder	Angle Sensor Fix.	£23.71 £19.76
9	ECERYB03300047 Available to backorder	Angular Sensor	£142.92 £119.10
10	ECERYB50803008 Available to backorder	Screw M3X8	£0.46 £0.38
11	ECERYB01200008 Available to backorder	Cable Gland Nut	£0.89 £0.74
12	ECERYB00000055 Available to backorder	L Strap Bracket	£23.71 £19.76
13	ECERYB00000021 Available to backorder	S Strap Bracket	£16.40 £13.67
14	ECERYB51904016 Available to backorder	Bolt M4X16	£0.52 £0.43
15	ECERYB00100004 Available to backorder	Lifting Axis	£41.88 £34.90
16	ECERYB01100000 Available to backorder	Round Cap	£1.01 £0.84
17	ECERYB01300004 Available to backorder	Rotation Thrust	£29.57 £24.64
20	ECERYB01900000 Available to backorder	Nylon Strap	£17.05 £14.21
25	ECERYB01600095 Available to backorder	Belt Reel	£43.06 £35.88
26	ECERYB00300009 Available to backorder	Driving Pulley	£99.36 £82.80
27	ECERYB01600002 Available to backorder	Magnet Support	£15.17 £12.64
28	ECERYB01900004 Available to backorder	Nylon Strap	£31.55 £26.29
29	ECERYB50304030 Available to backorder	Screw M4X30	£0.58 £0.48
30	ECERYB06220112 Available to backorder	Lifting Motor Upgrd	£273.60 £228.00
31	ECERYB70004000 Available to backorder	Washer M4	£0.48 £0.40
32	ECERYB80004000 Available to backorder	Nut M4	£0.48 £0.40
33	ECERYB52855050 Available to backorder	Screw St5.5X50	£0.79 £0.66
35	ECERYB50706008 Available to backorder	Screw M6X8	£0.35 £0.29
36	ECERYB00300010 Available to backorder	Locking Pin	£4.20 £3.50
