Billy Goat TKV650SPH - KV650SPH Vacuum Main Diagram

Name: Billy Goat TKV650SPH - KV650SPH Vacuum Main Diagram
SKU: tkv650sph_kv650sph_vacuum_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat TKV650SPH - KV650SPH Vacuum Main Diagram

Description

TKV650SPH Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG891100-S Available to backorder	Main Frame Housing Kv	£341.72 £284.77
2	BG891110-S Available to backorder	Nozzle Assembly Tkv	£240.96 £200.80
3	BG891600 Available to backorder	Axle Wa Kv Micro	£186.74 £155.62
4	BG891101-S Available to backorder	Plate Top Wa Kvsp	£171.48 £142.90
5	BG891104-S Available to backorder	Impeller Serrated 1425 Wa Kvsp	£334.10 £278.42
7	BG8172011 In stock	Washer 1/2" Sae Z/P	Was £1.10 £0.92 Special Price £0.73 £0.61
8	BG900760-S In stock	Wheel Assy 12" X 25" Tread	£96.60 £80.50
9	BG840069 Available to backorder	Engine 65 Hp Honda Gsv190An1L	£679.44 £566.20
10	BG891050 Available to backorder	Lower Handle Kv	£61.16 £50.97
11	BG891054-S Available to backorder	Handle Upper Kvsp	£143.94 £119.95
12	BG890630 Available to backorder	Quick Disconnect	£96.40 £80.33
15	BG430342 Available to backorder	Grip Handle 1"X 95" Lg	£6.38 £5.32
17	BG100346 Available to backorder	Label Read	£3.71 £3.09
18	BG400424 Available to backorder	Label Warning Danger	£3.71 £3.09
19	BG810736 Available to backorder	Label Danger Flying Debris	£3.71 £3.09
21	BG891132 Available to backorder	Debris Bag - No Zipper KV1	£282.60 £235.50

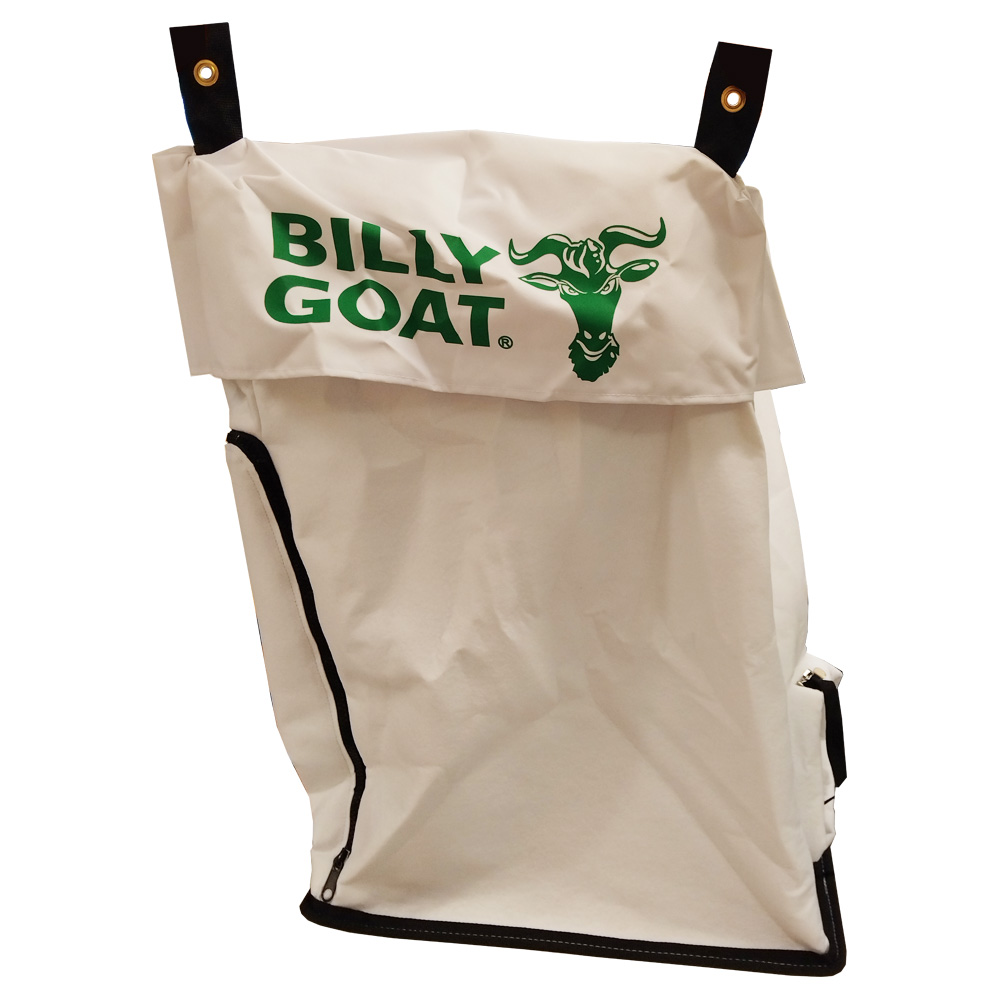

21	BG891211 Available to backorder	Bag Felt W/Skirt Kv (Fb Models)	£390.00 £325.00
22	BG891027-S Available to backorder	Cable Throttle Assy 42" W/Choke	£32.64 £27.20
23	BG891071 Available to backorder	J Bolt 3/8-16 X 6"	£8.22 £6.85
24	BG891032 In stock	Cable Clutch Drive Assy 40" Kvsp	£44.76 £37.30
26	BG891106 Available to backorder	Bracket Trans Mount Wa Kv	£42.78 £35.65
28	BG891020-S Available to backorder	Trans Single Speed W/Diff	£212.88 £177.40
29	BG891022 Available to backorder	Sprocket 8 Tooth #43 Or #65	£19.08 £15.90
30	BG891023 In stock	Chain #43 X 58 Pitches	£12.58 £10.48
31	BG891004-S In stock	Guard Drive Kv	Was £203.92 £169.93 Special Price £141.64 £118.03
32	BG891025-S Available to backorder	Bearing 1/2" Pressed Steel Housing	£14.58 £12.15
34	BG891014 Available to backorder	Plate Chain Reinforce Kv	£29.88 £24.90
35	BG840087 In stock	Pulley Idler 2" Od X 3/8" Id	£24.80 £20.67
36	BG800242 Available to backorder	Spring Tension	£5.26 £4.38
37	BG891102 Available to backorder	Bail Clutch Wa Kvsp	£33.80 £28.17
39	BG900327 Available to backorder	Label Danger Guard	£3.71 £3.09
40	BG890242-S Available to backorder	Wheel Assy Sp 26T Sprocket	£255.36 £212.80
41	BG840083 Available to backorder	Spacer 150Od X 890Id X 5 Thk	£11.28 £9.40
42	BG8177012 Available to backorder	Washer Lock 3/8 St Med	£1.20 £1.00
43	BG9201087 Available to backorder	Sq Key 2125 X 187	£3.02 £2.52
44	BG8161042 Available to backorder	Nut Lock 3/8-16 Thin	£1.20 £1.00
46	BG890359 Available to backorder	Screwcap 1/4 - 20 X 5/8 Hwh	£1.34 £1.12
47	BG800888 Available to backorder	Bolt Idler 3/8-16 X 1 1/2	£9.02 £7.52
48	BG8172007 Available to backorder	Washer 1/4" Sae Zp	£0.78 £0.65
49	BG8171003 Available to backorder	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
50	BG8041031 Available to backorder	Screwcap 5/16-18 X 175 Zp	£0.97 £0.81
51	BG8160002 Available to backorder	Nut Lock 5/16-18	£0.97 £0.81
52	BG8160003 Available to backorder	Nylon Insert Locknut 3/8-16 Unc	£1.20 £1.00
53	BG8041004 Available to backorder	Screwcap 1/4-20 X 3/4"	£0.97 £0.81
54	BG8160001 Available to backorder	Nylon Insert Locknut 1/4-20 Unc	£0.97 £0.81
55	BG80112110 Available to backorder	Screwcap #10-14 X 3/4" Hwh Zp	£0.97 £0.81
56	BG890530 Available to backorder	1/2-13 Cap Nut Np W/Patch	£6.12 £5.10
57	BG8041009 Available to backorder	Screwcap 1/4-20 X 1 3/4 Hcs Zp	£0.97 £0.81
59	BG891026 In stock	Belt 3V315	£39.60 £33.00
61	BG891002 Available to backorder	Nozzle Top Half Kv	£117.18 £97.65
62	BG891003 Available to backorder	Nozzle Bottom Half Kv	£88.56 £73.80
63	BG900146-01 In stock	Plug Housing Kd Lb	£8.90 £7.42
64	BG891039 Available to backorder	Screw Plastic 1/4-20 X 1	£1.34 £1.12
67	BG890238 Available to backorder	Sprocket 65A26 26 Tooth	£20.16 £16.80
69	BG900505 Available to backorder	Screw Self Tap 1/4 X 075	£1.61 £1.34
70	BG840082 Available to backorder	Screw Plastite 1/4-20 X 3/4 Hwh Zp	£1.28 £1.07
83	BG350146 Available to backorder	Clip 1/2"	£1.20 £1.00
84	BG510180 Available to backorder	Woodruff Key 1/8 X 1/2	£1.61 £1.34
85	BG8171006 Available to backorder	Washer 1/2" Fc	£1.20 £1.00
86	BG891072 Available to backorder	Spring Compression	£4.20 £3.50
87	BG891046 Available to backorder	Label Decal Kv/Tkv	£5.64 £4.70
88	BG510208 Available to backorder	Screw Sm 1/4 X 3/4 Drill Pt	£1.48 £1.23
92	BG8024021 Available to backorder	Carriage Bolt 1/4"-20 X 3/4"	£0.97 £0.81
93	BG8041006 Available to backorder	Screwcap 1/4-20 X 1" Hcs Zp	£0.97 £0.81
94	BG891208 Available to backorder	Kv Nozzle Bracket	£11.52 £9.60
96	BG891070 Available to backorder	Knob 3/8-16 Red	£14.57 £12.14
98	BG900407 Available to backorder	Ty Wrap	£0.78 £0.65
99	BG840071 Available to backorder	Nut 1/4-20 Acorn	£2.66 £2.22
106	BG830176 Available to backorder	Grommet Flange 1/2" Molded	£1.61 £1.34
107	BG400332 Available to backorder	Spring Compression	£2.54 £2.12
