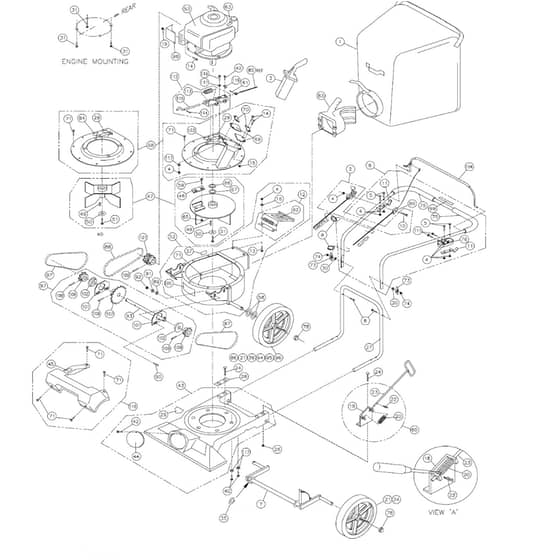

Billy Goat TKD510SP - Self Propelled Litter Vacuum Main Diagram

Ref. Img. Part No. Details
  2 Throttle Assembly BG900343-S
Throttle Assembly
Out of stock
£86.64 £72.20

  3 Tamper BG890229
Tamper
Out of stock
£63.50 £52.92

  4 Nut Lock (1/4 - 20) BG8160001
Nut Lock (1/4 - 20)
Out of stock
£0.97 £0.81

  5 Screw Cap (1/4 - 20 X 1- 1/2 Hex) BG8041008
Screw Cap (1/4 - 20 X 1- 1/2 Hex)
Out of stock
£1.20 £1.00

  6 Handle Assy' BG900059
Handle Assy'
Out of stock
£186.96 £155.80

  7 Axle Rear - Frame Wa BG890389
Axle Rear - Frame Wa
Out of stock
£96.24 £80.20

  8 Screw Handle 5/16 - 18 X 2-1/4 BG900547
Screw Handle 5/16 - 18 X 2-1/4
Out of stock
£0.80 £0.67

  11 Bar Support Bag BG900039
Bar Support Bag
Out of stock
£36.56 £30.47

  12 Door Exhaust Assy' BG890148-S
Door Exhaust Assy'
Out of stock
£65.36 £54.47

  13 Bolt - Carriage 1/4 X 3/4 BG8024021
Bolt - Carriage 1/4 X 3/4
Out of stock
£0.97 £0.81

  14 Screw Cap #10 - 24 X 5/8 BG8059135
Screw Cap #10 - 24 X 5/8
Out of stock
£0.97 £0.81

  15 Nut Lock #10 Nc BG8164005
Nut Lock #10 Nc
Out of stock
£0.97 £0.81

  18 Bracket - Height Adjustment BG900932
Bracket - Height Adjustment
Out of stock
£60.68 £50.57

  21 Tire - Only (Per Assy') Treaded BG900659
Tire - Only (Per Assy') Treaded
Out of stock
£37.40 £31.17

  22 Pin - Hair Cotter BG900471
Pin - Hair Cotter
Out of stock
£1.28 £1.07

  23 Rod Short Height Adjustment BG890110
Rod Short Height Adjustment
Out of stock
£13.38 £11.15

  24 Bolt - Carriage 5/16 - 18 X 4-1/2 BG8024054
Bolt - Carriage 5/16 - 18 X 4-1/2
Out of stock
£0.97 £0.81

  26 Nut Lock 5/16 - 18 Hex BG8160002
Nut Lock 5/16 - 18 Hex
Out of stock
£0.97 £0.81

  27 Handle Lower Kd505 BG900041
Handle Lower Kd505
Out of stock
£186.24 £155.20

  28 Plate Handle Support BG900933
Plate Handle Support
Out of stock
£5.81 £4.84

  29 Label Danger Cut Finger BG400424
Label Danger Cut Finger
Out of stock
£3.71 £3.09

  30 Washer Flat Cut 5/16 BG8171003
Washer Flat Cut 5/16
Out of stock
£0.78 £0.65

  34 Wheel Ass'Y Cast (Incl Items 21) Treaded BG900760-S
Wheel Ass'Y Cast (Incl Items 21) Treaded
Out of stock
£96.60 £80.50

  42 Screw Self Tapping 10 - 24 X 1/2 BG8123086
Screw Self Tapping 10 - 24 X 1/2
Out of stock
£1.08 £0.90

  43 Nozzle Frame BG890391
Nozzle Frame
Out of stock
£314.52 £262.10

  44 Plug BG900146-01
Plug
Out of stock
£9.24 £7.70

  46 Blade Chipper BG890101
Blade Chipper
Out of stock
£88.70 £73.92

  49 Key 3/16 Sq X 125 BG5108837
Key 3/16 Sq X 125
Out of stock
£2.96 £2.47

  50 Washer Lock 3/8 Twisted Tooth BG400502
Washer Lock 3/8 Twisted Tooth
Out of stock
£4.20 £3.50

  51 Screw Cap 3/8 - 24 X 2 BG5108673
Screw Cap 3/8 - 24 X 2"
Out of stock
£9.91 £8.26

  52 Housing Ass'Y BG890419
Housing Ass'Y
Out of stock
£323.28 £269.40

  58 Washer Flat 1/2 Sae BG8172011
Washer Flat 1/2 Sae
In stock
Was £1.10 £0.92 Special Price £0.73 £0.61

  60 Height Adjustment Ass'Y BG890326
Height Adjustment Ass'Y
Out of stock
£86.16 £71.80

  62 Label Danger Flying Material BG810736
Label Danger Flying Material
Out of stock
£3.71 £3.09

  71 Screw Cap 1/4-20 X 1/2 Hwh BG890359
Screw Cap 1/4-20 X 1/2 Hwh
Out of stock
£1.40 £1.17

  73 Knob Wing 5/16-18 BG890108
Knob Wing 5/16-18
Out of stock
£2.48 £2.07

  75 Grip Handle BG400570
Grip Handle
Out of stock
£6.74 £5.62

  78 1/2-13 Cap Nut Np W/Patch BG890530
1/2-13 Cap Nut Np W/Patch
Out of stock
£5.95 £4.96

  83 Connector Quick BG890176
Connector Quick
Out of stock
£83.64 £69.70

  86 Wheel With Sprocket Ass'Y Cast BG890242-S
Wheel With Sprocket Ass'Y Cast
Out of stock
£255.36 £212.80

  87 Chain 52 Pitch BG890239
Chain 52 Pitch
Out of stock
£18.92 £15.77

  88 Chain 40 Pitch BG900323
Chain 40 Pitch
Out of stock
£15.24 £12.70

  90 Bolt Carriage 5/16 - 18 X 3/4 BG8024039
Bolt Carriage 5/16 - 18 X 3/4
Out of stock
£0.97 £0.81

  91 Washer Spring Lock 5/16 BG8177011
Washer Spring Lock 5/16
Out of stock
£0.78 £0.65

  92 Nut Regular 5/16 - 18 BG8142002
Nut Regular 5/16 - 18
Out of stock
£0.97 £0.81

  93 Jackshaft BG900320
Jackshaft
Out of stock
£23.76 £19.80

  94 Sprocket 26 Teeth BG890238
Sprocket 26 Teeth
Out of stock
£20.16 £16.80

  96 Washer Lock External Tooth BG8181007
Washer Lock External Tooth
Out of stock
£0.78 £0.65

  100 Label - Warning Guards BG900327
Label - Warning Guards
Out of stock
£3.71 £3.09

  102 Bearing Ball (With Snap Ring) BG900321
Bearing Ball (With Snap Ring)
Out of stock
£9.02 £7.52

  104 Rod Bail Clutch BG900970
Rod Bail Clutch
Out of stock
£76.88 £64.07

  108 Sprocket - 8 Tooth BG900302
Sprocket - 8 Tooth
Out of stock
£81.67 £68.06

  109 Roll Pin 3/16 Dia X 1 1/4 Lg BG8195166
Roll Pin 3/16 Dia X 1 1/4 Lg
Out of stock
£1.06 £0.88

  112 Bracket Control Ass'Y BG900221
Bracket Control Ass'Y
Out of stock
£65.40 £54.50

  113 Spring BG900136
Spring
Out of stock
£2.48 £2.07

  115 Rod Clutch BG900208
Rod Clutch
Out of stock
£31.08 £25.90

  116 Screw Cap 1/4-20 X 1 BG8041006
Screw Cap 1/4-20 X 1" Lg
Out of stock
£0.97 £0.81

  117 Washer 1/4 BG8171002
Washer 1/4" Flat (5/16 Id X 3/4 Od X 1/16)
Out of stock
£0.78 £0.65

  121 Clutch Double Release BG890605
Clutch Double Release
Out of stock
£276.36 £230.30

  123 Label Read Owner'S Manual BG100346
Label Read Owner'S Manual
Out of stock
£3.71 £3.09
