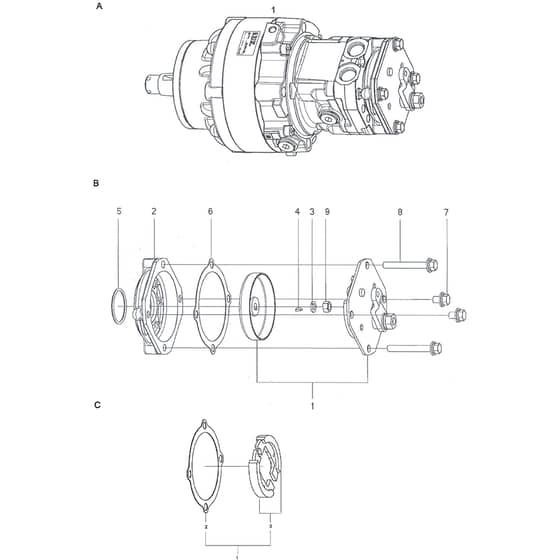

TITAN 740 DCR - 2013-2019 - 13-7462-11 - Stiga Front Mower Motor Diagram

Description

Stiga TITAN 740 DCR Parts Diagram

Product Name - TITAN 740 DCR

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7462-11

Engine Model - Yanmar 3TNV82

	Part No.	Details
1	MO1139-1705-01 Available to backorder	Brake (Service Part) C . Inkl. pos 2-3	£622.43 £518.69
1	MO1139-1753-01 Available to backorder	Brake Assy B section	£1,082.18 £901.82
1	MO1137-0961-01 Available to backorder	Hydraulic Motor	£3,927.58 £3,272.98
2	MO1139-1650-01 Available to backorder	Case Brake B section	£206.21 £171.84
3	MO1139-1577-01 Available to backorder	Washer B section	£5.04 £4.20
4	MO1139-1578-01 Available to backorder	Key B section	£6.30 £5.25
5	MO1139-1580-01 Available to backorder	Packing B section	£7.97 £6.64
6	MO1139-1698-01 Available to backorder	Packing B section	£29.71 £24.76
9	MO1139-1589-01 Available to backorder	Nut 8	£5.02 £4.18
