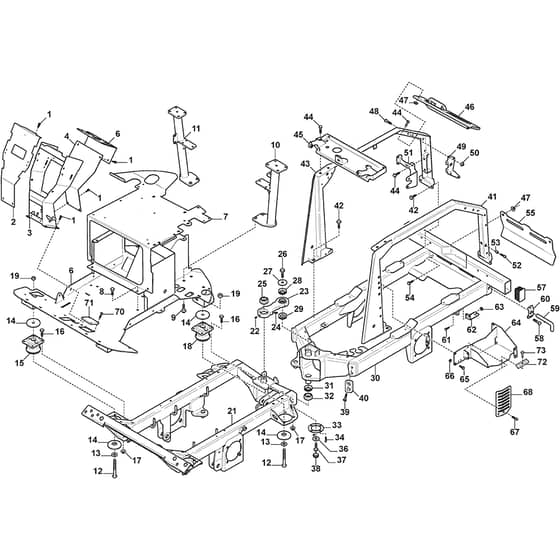

TITAN 740 DCR - 2013-2019 - 13-7462-11 - Stiga Front Mower Frame Diagram

Description

Stiga TITAN 740 DCR Parts Diagram

Product Name - TITAN 740 DCR

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7462-11

Engine Model - Yanmar 3TNV82

Be the first to review this product

0 product questions

	Part No.	Details
6	MO1137-0548-01 Available to backorder	Floor Plate cmpl-Grey	£1,739.95 £1,449.96
9	MO9959-1225-16 Available to backorder	Screw	£1.55 £1.29
11	MO1137-0544-01 Available to backorder	Rops Attachment Rh-Grey	£400.55 £333.79
12	MO082-202-01 Available to backorder	Screw	£4.02 £3.35
13	MO9699-0123-02 Available to backorder	Washer	£4.66 £3.88
17	MO9739-1031-22 In stock	Nut	£1.97 £1.64
19	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
22	MO9907-0610-16 Available to backorder	Screw	£3.10 £2.58
23	MO1135-3018-01 Available to backorder	Link Assy	£810.96 £675.80
24	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
25	MO9547-0006-01 Available to backorder	Bearing	£32.38 £26.98
27	MO1135-4008-01 Available to backorder	V-Ring	£10.84 £9.03
28	MO9404-0204-01 Available to backorder	V-Ring	£12.11 £10.09
31	MO9404-0202-01 Available to backorder	V-Ring	£4.08 £3.40
32	MO9547-0007-01 Available to backorder	Bearing	£59.98 £49.98
33	MO1135-4009-01 Available to backorder	Washer	£89.17 £74.31
34	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
36	MO1135-4010-01 Available to backorder	Washer	£6.76 £5.63
37	MO9991-1024-19 Available to backorder	Screw	£2.68 £2.23
38	MO1135-4007-01 Available to backorder	Cover	£15.76 £13.13
40	MO1135-3188-01 Available to backorder	Steering Limit	£25.12 £20.93
42	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
44	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
47	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
48	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
49	MO1137-0557-01 Available to backorder	Bracket	£36.92 £30.77
50	MO112154510/0 In stock	Nut	£1.55 £1.29
51	MO1137-0556-01 Available to backorder	Bracket Pto-Block. Grey	£54.31 £45.26
52	MO9939-1020-16 Available to backorder	Screw	£1.55 £1.29
53	MO1134-0041-10 Available to backorder	Bushing	£40.82 £34.02
54	MO9945-0816-16 Available to backorder	Screw	£2.26 £1.88
55	MO1137-0553-01 Available to backorder	Heat Plate-Grey	£85.57 £71.31
57	MO9403-0058-01 Available to backorder	End Cap	£7.88 £6.57
58	MO112735662/1 In stock	Screw	£2.40 £2.00
59	MO1134-7525-01 Available to backorder	Locking Pin Assy	£66.16 £55.13
60	MO1134-7523-01 Available to backorder	Bracket-Locking Pin	£11.63 £9.69
63	MO112293201/0 In stock	Nut	£1.69 £1.41
64	MO1137-0509-01 Available to backorder	Battery Holder	£165.88 £138.23
66	MO112155000/0 In stock	Nut	£1.55 £1.29
70	MO9943-0516-16 In stock	Screw	£1.22 £1.02
72	MO1134-6943-01 Available to backorder	Battery Clamp	£47.88 £39.90
73	MO9959-0820-16 In stock	Screw M6Sf M8 X 20 Tl	£1.55 £1.29
