TITAN 740 DCR - 2013-2019 - 13-7462-11 - Stiga Front Mower Controls Diagram

Name: TITAN 740 DCR - 2013-2019 - 13-7462-11 - Stiga Front Mower Controls Diagram
SKU: titan_740_dcr_13_7462_11_controls-group
Price: 1.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 DCR - 2013-2019 - 13-7462-11 - Stiga Front Mower Controls Diagram

Description

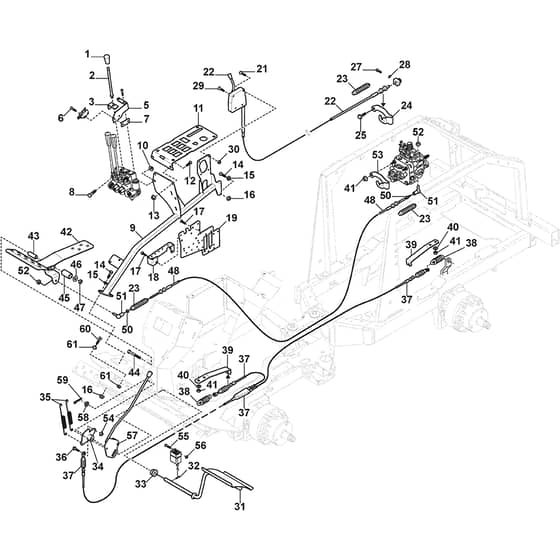

Stiga TITAN 740 DCR Parts Diagram

Product Name - TITAN 740 DCR

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7462-11

Engine Model - Yanmar 3TNV82

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1135-2498-01 Available to backorder	Knob	£8.53 £7.11
2	MO1135-2497-01 Available to backorder	Lever	£17.17 £14.31
5	MO1134-7474-01 Available to backorder	Switch Bracket	£520.39 £433.66
6	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
8	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
14	MO9959-0820-16 In stock	Screw	£1.55 £1.29
15	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
16	MO112293201/0 In stock	Nut	£1.69 £1.41
17	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
19	MO1135-3614-01 Available to backorder	Collecting Plate 2010	£94.21 £78.51
22	MO1134-7257-04 Available to backorder	Throttle Lever	£239.32 £199.43
23	MO1135-3948-01 Available to backorder	Bellows	£14.70 £12.25
25	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
28	MO9652-0007-04 Available to backorder	Circlip	£1.97 £1.64
29	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
31	MO1134-7267-03 Available to backorder	Brake Pedal Assy	£31.82 £26.52
32	MO9595-0210-00 Available to backorder	Locating Pin	£7.88 £6.57
33	MO1134-6313-01 Available to backorder	Bearing	£7.03 £5.86
35	MO1134-7401-01 Available to backorder	Spring	£6.20 £5.17
36	MO112789020/0 Available to backorder	Screw	£1.54 £1.28
37	MO1137-1137-01 Available to backorder	Cable. Thread Engine Brake	£187.33 £156.11
38	MO1134-7321-01 Available to backorder	Spring	£7.42 £6.18
39	MO1137-0589-01 Available to backorder	Brake Wire Bracket-Black	£27.43 £22.86
41	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
42	MO1134-7216-02 Available to backorder	Drive Pedal Assy	£204.12 £170.10
43	MO1134-7217-01 Available to backorder	Spacer	£9.08 £7.57
45	MO9548-0027-01 Available to backorder	Bearing	£9.37 £7.81
46	MO9699-0030-02 In stock	Washer	£1.97 £1.64

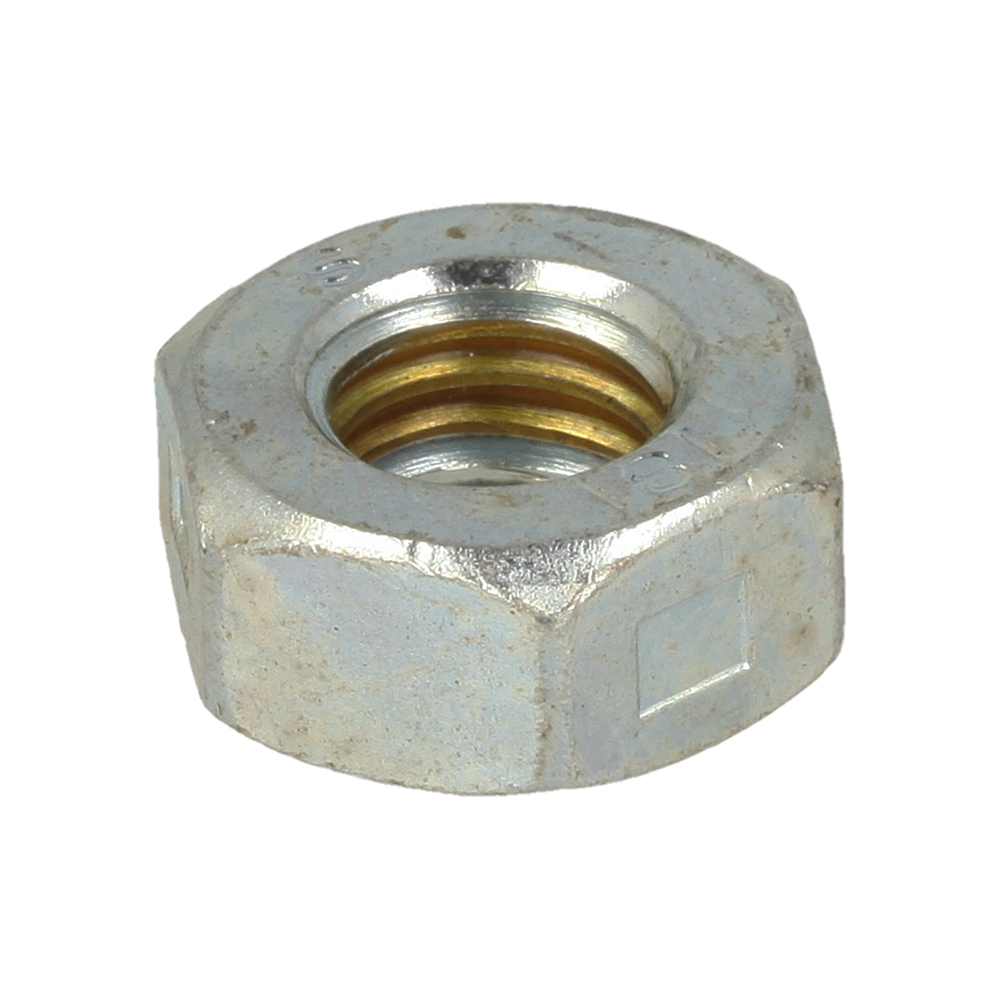

47	MO1134-4775-01 Available to backorder	Nut	£2.53 £2.11

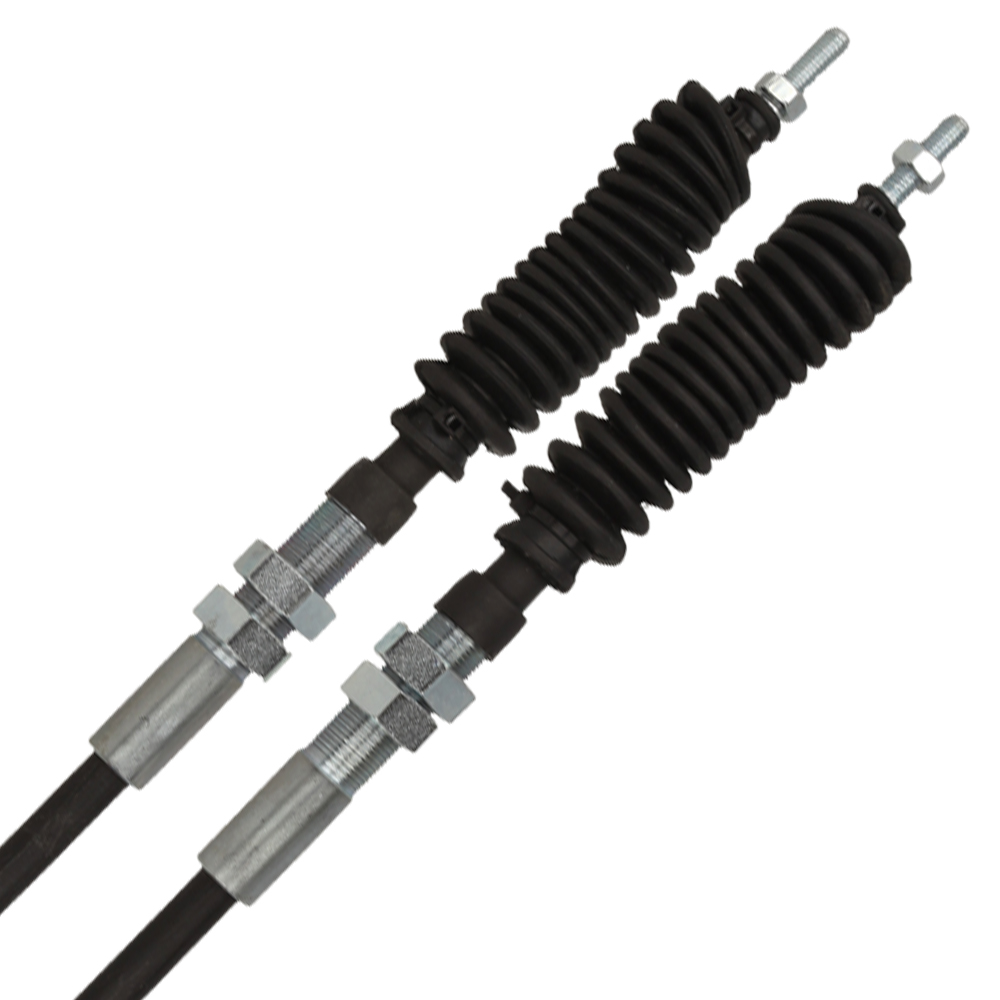

48	MO1134-7054-03 Available to backorder	Control Cable	£190.04 £158.37
50	MO112292102/0 In stock	Nut	£1.69 £1.41
51	MO9570-0004-00 Available to backorder	Elbow Link	£25.12 £20.93
52	MO112154510/0 In stock	Nut	£1.55 £1.29
55	MO112789008/0 Available to backorder	Screw	£1.82 £1.52
56	MO112154330/0 In stock	Nut	£1.55 £1.29
58	MO122671652/0 Available to backorder	Washer	£2.29 £1.91
59	MO9599-0080-02 Available to backorder	Cotter Pin	£2.12 £1.77
60	MO9997-0835-16 Available to backorder	Screw	£1.90 £1.58
61	MO112154220/0 Available to backorder	Self-Lock Flanged Nut M8	£1.55 £1.29
