TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Wheel Engine Front Diagram

Name: TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Wheel Engine Front Diagram
SKU: titan_740_dc_13_7461_11_wheel_engine_front-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Wheel Engine Front Diagram

Description

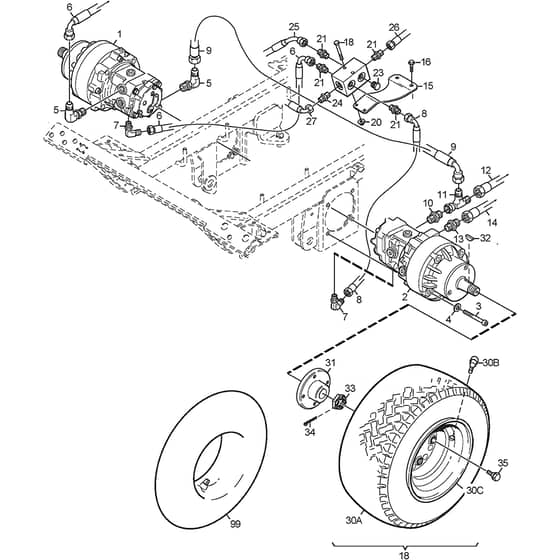

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-0961-01 Available to backorder	Hydraulic Motor (W.O Orifice)	£3,927.58 £3,272.98
2	MO1137-0654-01 Available to backorder	Hydraulic Motor (with orifice)	£3,998.54 £3,332.12
3	MO9939-1213-02 Available to backorder	Screw	£3.24 £2.70
4	MO122671652/0 Available to backorder	Washer	£2.29 £1.91
5	MO1137-0755-02 Available to backorder	Hydraulic Connector	£47.87 £39.89
7	MO1137-0755-01 Available to backorder	Hydraulic Connector	£47.87 £39.89
15	MO1137-0597-01 Available to backorder	Hydraulic Block Bracket	£40.50 £33.75
16	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
19	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
20	MO112292102/0 In stock	Nut	£1.69 £1.41
30	MO1134-7308-02 Available to backorder	Wheel Assy	£373.06 £310.88
31	MO1134-6971-01 Available to backorder	Wheel Hub Assy	£120.36 £100.30
32	MO1134-6996-01 Available to backorder	Woodruff Key	£7.31 £6.09
34	MO9599-0101-02 Available to backorder	Cotter Pin	£1.40 £1.17
35	MO1134-7041-01 Available to backorder	Screw	£4.33 £3.61
99	MO9545-0211-01 Available to backorder	Inner Tube 20" Only as spare part	£43.64 £36.37
999	MO9545-0127-01 Available to backorder	Tyre	£159.13 £132.61
999	MO9545-0500-00 Available to backorder	Valve Assembly	£5.35 £4.46
999	MO1134-7309-01 Available to backorder	Rim 10Inch 2010Inch	£266.99 £222.49
