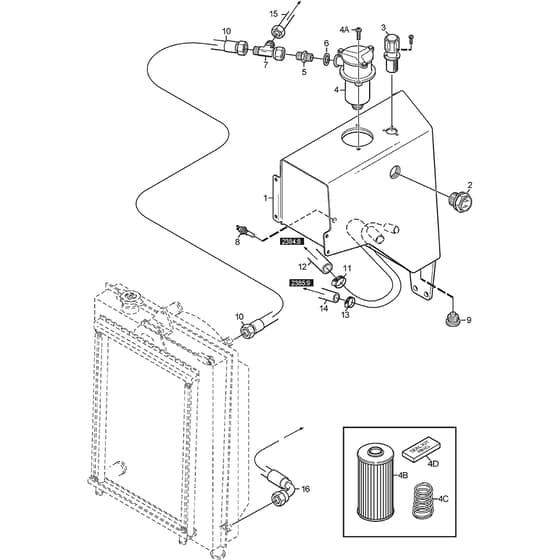

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Oil Tank Diagram

Name: TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Oil Tank Diagram
SKU: titan_740_dc_13_7461_11_oil_tank-group
Price: 1.36 GBP
Availability: InStock

Part No. titan_740_dc_13_7461_11_oil_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Oil Tank Diagram

Description

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

	Part No.	Details
2	MO1134-7379-02 Available to backorder	Sight Glass	£52.08 £43.40
3	MO1135-3965-01 Available to backorder	Air Venting Filtre	£85.87 £71.56
4	MO084-297-01 Available to backorder	Oil Filter. Return (A)	£167.54 £139.62
6	MO1134-4948-01 Available to backorder	Washer	£2.69 £2.24
8	MO084-459-02 Available to backorder	Temperature Sensor	£183.01 £152.51
999	MO112760515/0 Available to backorder	Screw	£1.63 £1.36
999	MO1139-2098-01 Available to backorder	Seal Ring Kit-Oil Filter Not ill	£109.09 £90.91
999	MO1139-2087-01 Available to backorder	Spring For Oil Filter Not ill	£48.85 £40.71
999	MO084-479-01 Available to backorder	Hydraulic Filter (B) Not ill (10 my paper)	£218.21 £181.84
