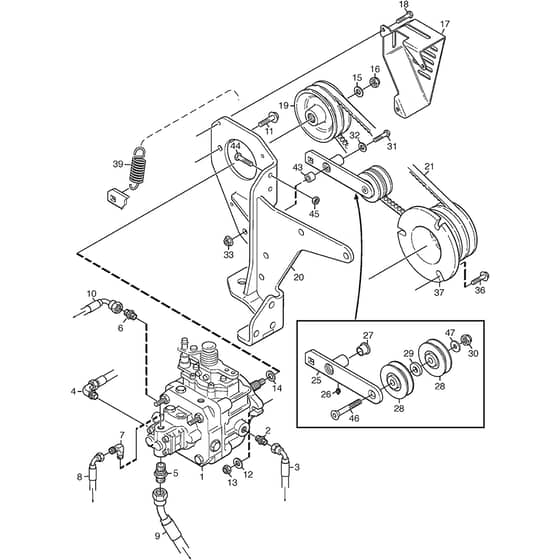

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Hydro Pump Diagram

Name: TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Hydro Pump Diagram
SKU: titan_740_dc_13_7461_11_hydro_pump-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Hydro Pump Diagram

Description

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1137-1128-01 Available to backorder	Hydraulic Pump	£5,397.49 £4,497.91
2	MO1134-5809-01 Available to backorder	Hydraulic Coupling	£17.60 £14.67
8	MO1137-0195-03 Available to backorder	Hydraulic Hose	£114.02 £95.02
11	MO9997-1035-16 Available to backorder	Screw	£3.52 £2.93
14	MO1137-0604-01 Available to backorder	Spacer	£24.91 £20.76
15	MO122671652/0 Available to backorder	Washer	£2.29 £1.91
16	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
18	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29

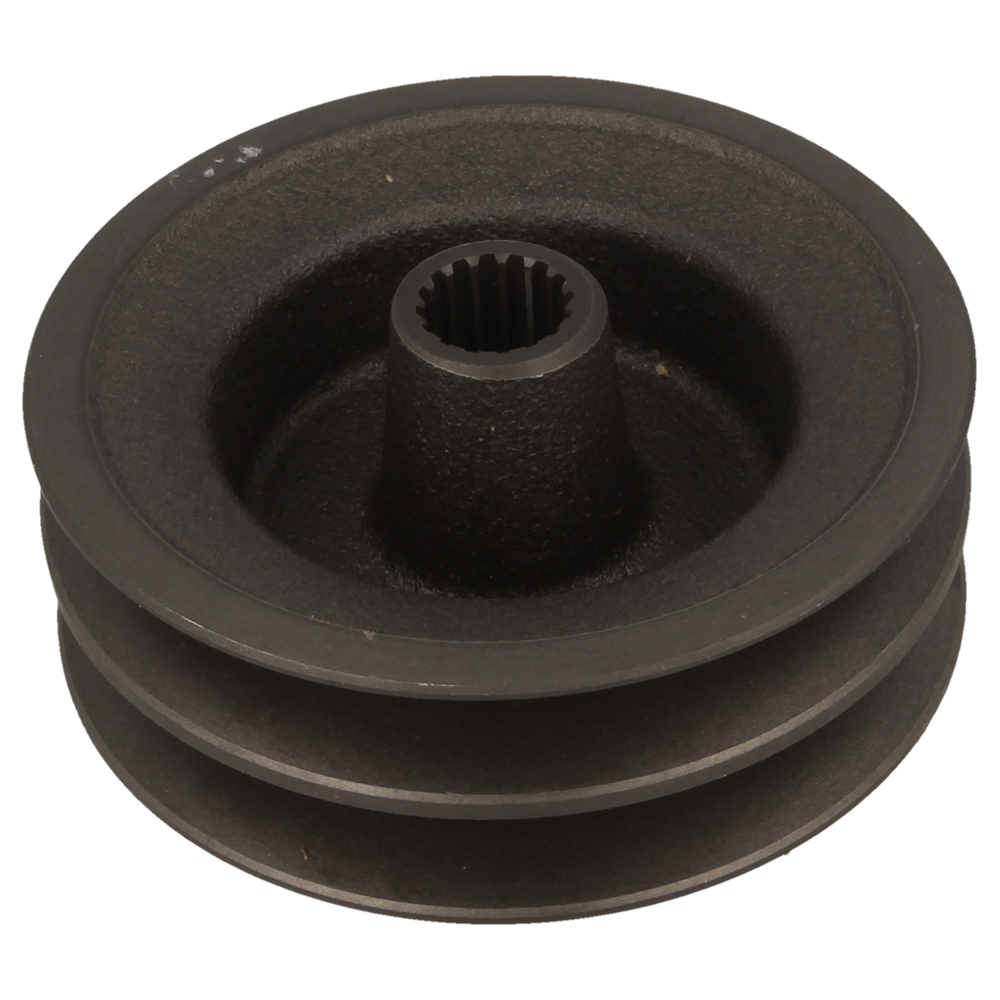

19	MO1134-6968-01 In stock	Pulley	Was £125.87 £104.89 Special Price £83.08 £69.23
20	MO1137-0517-01 Available to backorder	Hst-Pump Bracket	£494.98 £412.48
22	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
23	MO9959-0820-16 In stock	Screw	£1.55 £1.29
25	MO1137-0526-01 Available to backorder	Tensioner	£99.01 £82.51
27	MO9544-0023-01 Available to backorder	Bearing	£3.06 £2.55
28	MO1134-6329-02 Available to backorder	Tension Roller	£112.62 £93.85
31	MO9997-1040-12 Available to backorder	Screw	£2.81 £2.34
32	MO9699-0030-02 In stock	Washer	£1.97 £1.64
36	MO9997-1225-16 Available to backorder	Screw	£4.08 £3.40
37	MO1135-2518-01 Available to backorder	Belt Pulley	£281.56 £234.63
39	MO1137-0599-01 Available to backorder	Spring	£13.72 £11.43
45	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
46	MO9939-1213-02 Available to backorder	Screw	£3.24 £2.70
