TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Engine Parts 02 Diagram

Description

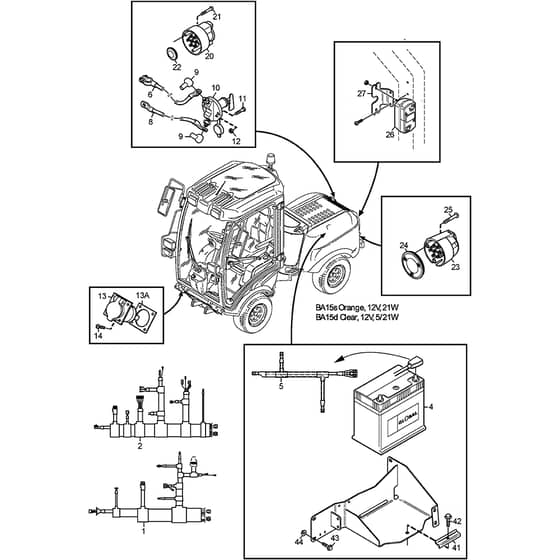

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

	Part No.	Details
1	MO1137-0661-01 Available to backorder	Harness Rear-Lh	£492.70 £410.58
2	MO1137-0662-01 Available to backorder	Harness Rear-Rh	£782.83 £652.36
4	MO1134-4940-02 Available to backorder	Battery	£198.05 £165.04
9	MO118564861/2 In stock	Protection	£6.77 £5.64
10	MO9400-0316-01 Available to backorder	Microswitch	£72.46 £60.38
11	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
12	MO112292102/0 In stock	Nut	£1.70 £1.42
13	MO387149302/0 In stock	Female Connector	£10.14 £8.45
14	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
20	MO9400-0347-01 Available to backorder	Socket	£32.96 £27.47
21	MO9947-0540-19 Available to backorder	Screw	£1.97 £1.64
25	MO9946-0525-16 Available to backorder	Screw	£2.11 £1.76
26	MO9400-0382-01 Available to backorder	Rear Lamp	£92.90 £77.42
28	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
40	MO1137-0509-01 Available to backorder	Battery Holder	£165.89 £138.24
41	MO1134-6943-01 Available to backorder	Battery Clamp	£47.89 £39.91
42	MO9959-0820-16 Available to backorder	Screw	£1.55 £1.29
43	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
44	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
