TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Engine Diagram

Description

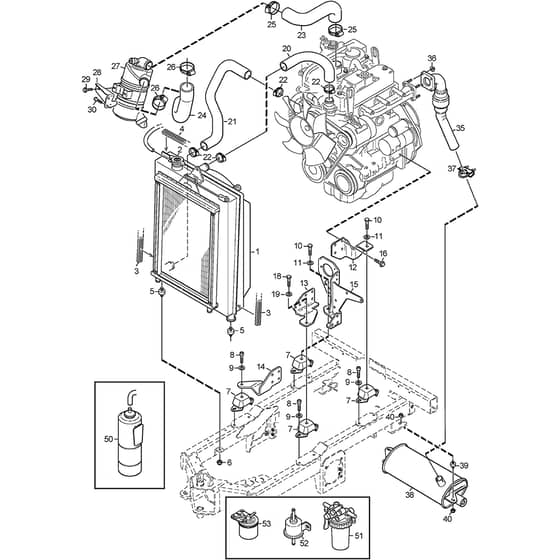

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1139-2122-01 Available to backorder	Radiator Cap	£50.68 £42.23
7	MO084-362-01 Available to backorder	Engine Cushion	£259.01 £215.84
8	MO9939-1020-16 Available to backorder	Screw	£1.55 £1.29
9	MO112521360/0 In stock	Washer	£1.55 £1.29
10	MO9997-1230-16 Available to backorder	Screw	£2.12 £1.77
11	MO122671652/0 Available to backorder	Washer	£2.29 £1.91
13	MO1137-0514-01 Available to backorder	Engine Bracket-Black	£181.69 £151.41
15	MO1137-0517-01 Available to backorder	Hst-Pump Bracket	£494.98 £412.48
16	MO9959-1225-16 Available to backorder	Screw	£1.55 £1.29
24	MO1134-7460-01 Available to backorder	Hose	£47.87 £39.89
25	MO087-510-01 Available to backorder	Hose Clamp 44-56	£7.39 £6.16

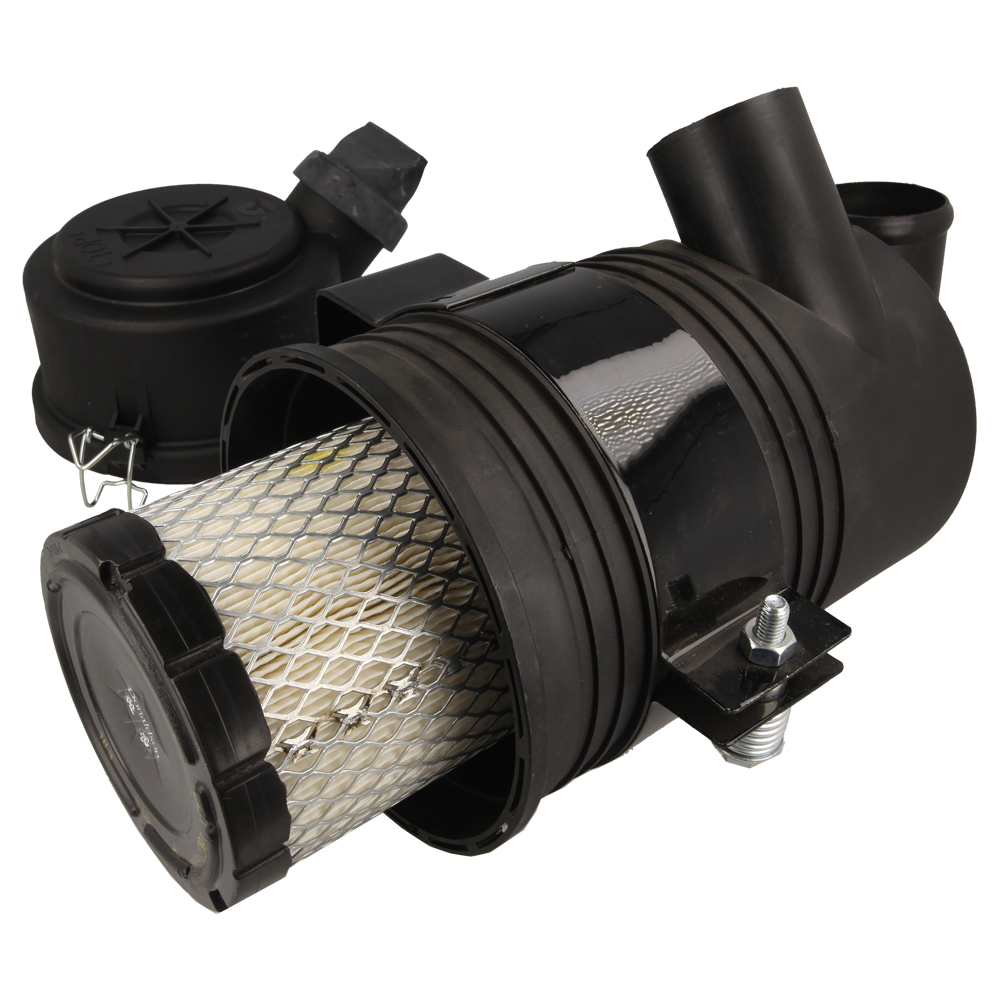

27	MO1135-3961-01 Available to backorder	Air Filter Contain also 1139-2652-01	£255.02 £212.52
28	MO1137-0558-01 Available to backorder	Air Cleaner Bracket. Black	£66.53 £55.44
29	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
30	MO9997-0816-16 Available to backorder	Screw	£1.55 £1.29
35	MO1137-0578-01 Available to backorder	Exhaust Pipe cmpl	£189.62 £158.02
37	MO084-351-01 Available to backorder	Band	£11.82 £9.85
38	MO1137-0576-01 Available to backorder	Muffler Assy	£266.06 £221.72
39	MO9550-0008-03 Available to backorder	Vibration Damper	£20.34 £16.95
40	MO112293201/0 In stock	Nut	£1.69 £1.41
50	MO1135-2751-01 Available to backorder	Sub Tank 2010	£71.80 £59.83
51	MO1135-2818-01 Available to backorder	Water Separator 2010	£316.75 £263.96
