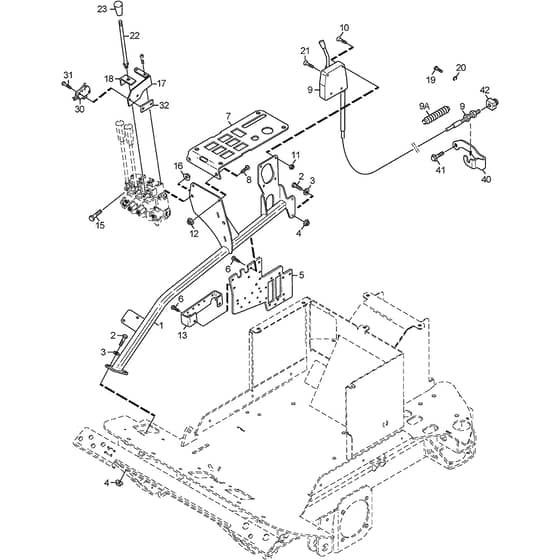

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Controls Diagram

Name: TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Controls Diagram
SKU: titan_740_dc_13_7461_11_controls-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 DC - 2013-2014 - 13-7461-11 - Stiga Front Mower Controls Diagram

Description

Stiga TITAN 740 DC Parts Diagram

Product Name - TITAN 740 DC

Model Year - 2013-2014

Model Type - T 701

Art.N - 13-7461-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO9959-0820-16 In stock	Screw	£1.55 £1.29
3	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
4	MO112293201/0 In stock	Nut	£1.69 £1.41
5	MO1135-3614-01 Available to backorder	Collecting Plate 2010	£94.21 £78.51
6	MO9893-0616-16 Available to backorder	Screw	£2.12 £1.77
9	MO1134-7257-04 Available to backorder	Throttle Lever	£239.32 £199.43
11	MO112154330/0 In stock	Nut	£1.55 £1.29
14	MO1137-0641-01 Available to backorder	Handman. Valve	£1,365.49 £1,137.91
15	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
17	MO1134-7474-01 Available to backorder	Switch Bracket	£520.39 £433.66
20	MO9652-0007-04 Available to backorder	Circlip	£1.97 £1.64
21	MO9946-0525-16 Available to backorder	Screw	£2.12 £1.77
22	MO1135-2497-01 Available to backorder	Lever	£17.17 £14.31
23	MO1135-2498-01 Available to backorder	Knob	£8.53 £7.11
30	MO9400-0360-01 Available to backorder	Microswitch	£8.17 £6.81
31	MO9840-7716-16 Available to backorder	Screw	£1.97 £1.64
41	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
999	MO1135-3948-01 Available to backorder	Rubber Sleeve	£14.70 £12.25
