TITAN 740 D - 2013-2019 - 13-7460-11 - Stiga Front Mower Seat Diagram

Name: TITAN 740 D - 2013-2019 - 13-7460-11 - Stiga Front Mower Seat Diagram
SKU: titan_740_d_13_7460_11_seat-group
Price: 1.29 GBP
Availability: InStock

Part No. titan_740_d_13_7460_11_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TITAN 740 D - 2013-2019 - 13-7460-11 - Stiga Front Mower Seat Diagram

Description

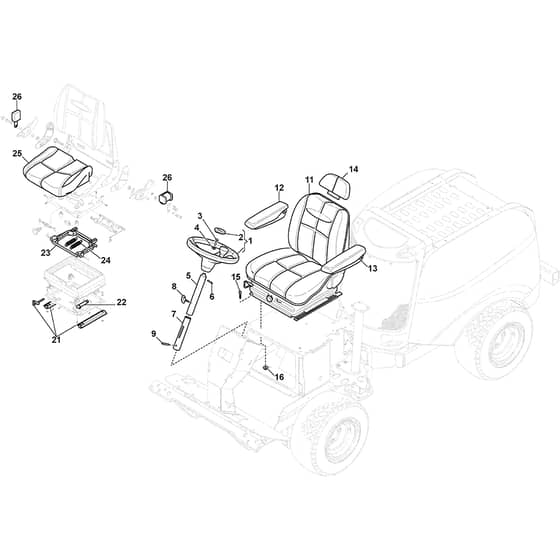

Stiga TITAN 740 D Parts Diagram

Product Name - TITAN 740 D

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7460-11

Engine Model - Yanmar 3TNV82

	Part No.	Details
1	MO337961200/0 Available to backorder	Steering Wheel	£344.90 £287.42
2	MO337580550/0 Available to backorder	Steering Plate	£8.72 £7.27
3	MO112793102/0 In stock	Screw	£1.55 £1.29
4	MO112583500/0 In stock	Grower	£1.55 £1.29
5	MO387520101/2 Available to backorder	Steering Column	£92.90 £77.42
6	MO112620300/0 In stock	Spring Pin 6X50	£1.84 £1.53
7	MO1134-5216-01 Available to backorder	Steering Tube-Inner Assy	£85.02 £70.85
8	MO337394201/0 Available to backorder	Wing Nut	£13.25 £11.04
11	MO1134-7215-01 Available to backorder	Seat	£1,598.51 £1,332.09
12	MO1134-7532-02 Available to backorder	Arm Rests-Rh	£168.32 £140.27
13	MO1134-7532-01 Available to backorder	Arm Rests-Lh	£168.32 £140.27
15	MO9930-0820-16 Available to backorder	Screw	£1.55 £1.29
16	MO112293201/0 In stock	Nut	£1.70 £1.42
21	MO1139-0031-01 Available to backorder	Adjustment Lever	£140.77 £117.31
23	MO1139-0032-01 Available to backorder	Spring Frame	£212.21 £176.84
24	MO1139-0029-01 Available to backorder	Spring	£17.10 £14.25
