TITAN 540 D - 2013-2019 - 13-7454-11 - Stiga Front Mower Oil Tank Diagram

Description

Stiga TITAN 540 D Parts Diagram

Product Name - TITAN 540 D

Model Year - 2013-2019

Model Type - T 701

Art.N - 13-7454-11

Engine Model - Yanmar 3TNV76

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1134-7185-01 Available to backorder	Plastic Cap	£5.64 £4.70
2	MO1134-7184-01 Available to backorder	Plastic Plug (Red) 1.2	£9.16 £7.63
3	MO1134-7181-01 Available to backorder	Quick Connector-Male 1.2	£25.10 £20.92
4	MO1134-7180-01 Available to backorder	Hydraulic Coupling (1.2)	£21.40 £17.83
5	MO1134-4948-03 Available to backorder	Washer	£3.52 £2.93
7	MO1134-7182-01 Available to backorder	Quick Connector-Female 1.2	£45.04 £37.53
9	MO1134-6042-01 Available to backorder	Quick Coupling-Male	£30.97 £25.81
10	MO1134-7296-01 Available to backorder	Hydraulic Coupling (1.4)	£18.14 £15.12
13	MO1134-7175-01 Available to backorder	Plastic Cap	£8.52 £7.10
16	MO1134-7225-01 Available to backorder	Wiring Harness	£81.66 £68.05
17	MO1134-7127-02 Available to backorder	Hydraulic Valve	£1,302.14 £1,085.12
18	MO1139-2090-01 Available to backorder	Relief Valve (220 Bar) 220 bar	£563.09 £469.24
19	MO1139-2089-01 Available to backorder	Relief Valve (10 Bar) 10 bar	£577.16 £480.97
20	MO1139-2088-02 Available to backorder	Electric Valve Incl. Magnet	£415.30 £346.08
28	MO1134-7379-02 Available to backorder	Sight Glass	£52.08 £43.40
30	MO1135-3965-01 Available to backorder	Air Venting Filtre	£85.87 £71.56
31	MO112760515/0 Available to backorder	Screw	£1.55 £1.29
32	MO084-297-01 Available to backorder	Oil Filter. Return (A)	£167.53 £139.61

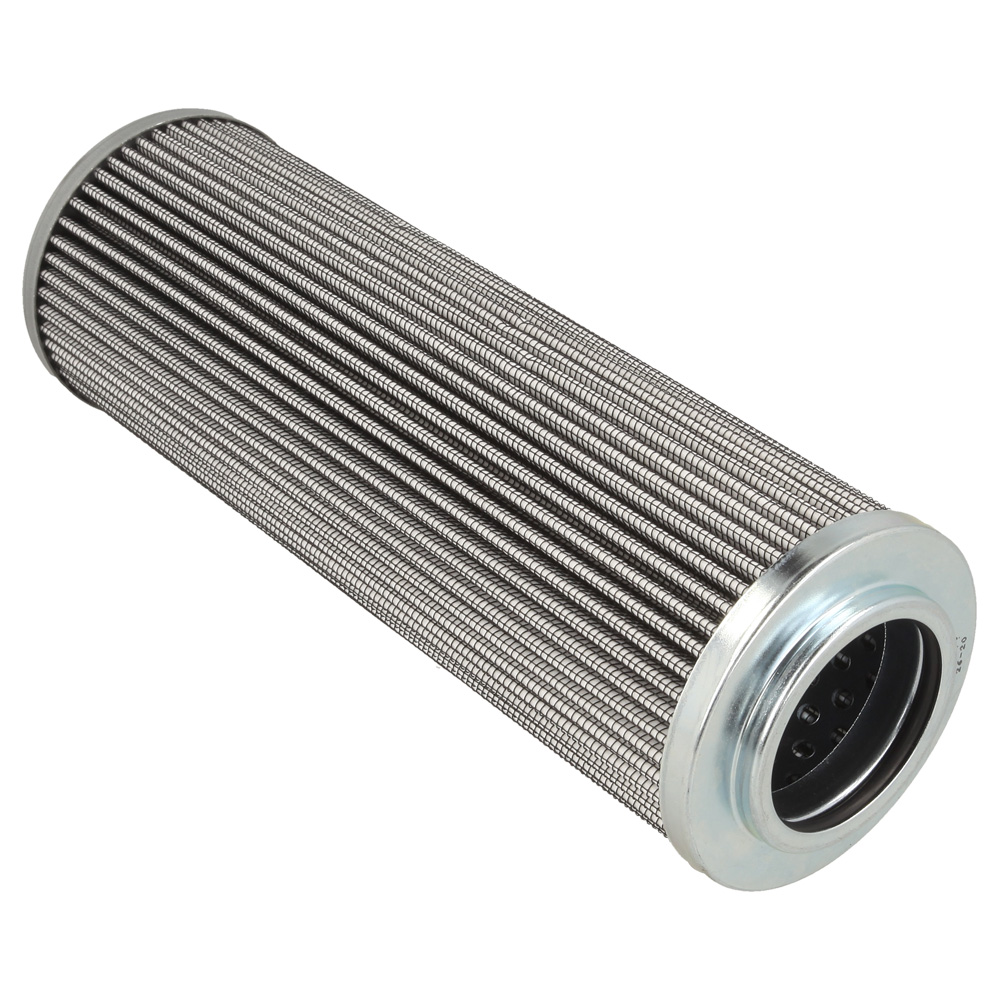

33	MO084-479-01 Available to backorder	Hydraulic Filter (B)	£218.21 £181.84
34	MO1139-2087-01 Available to backorder	Spring For Oil Filter	£48.85 £40.71
35	MO1139-2098-01 Available to backorder	Seal Ring Kit-Oil Filter	£109.09 £90.91
36	MO1134-4948-01 Available to backorder	Washer	£2.68 £2.23

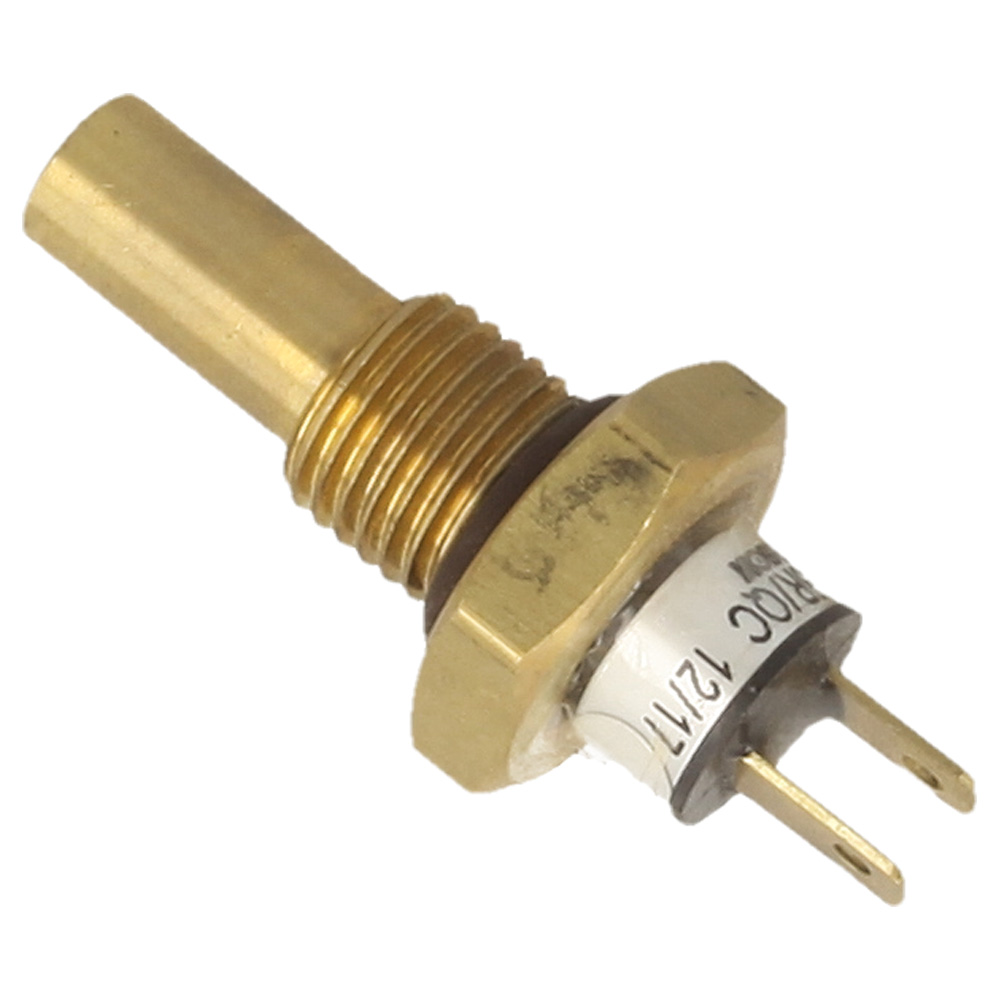

42	MO084-459-02 Available to backorder	Temperature Sensor	£183.01 £152.51
47	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
